KR/NUKR Series Cam Followers
KR/NUKR Series Cam Followers
SKU:CAM-a90471
N/A
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
KR/NUKR Series Cam Followers
$49.99
Quantity: 1
Claim Your Seller Account
KR/NUKR Series Cam Followers
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

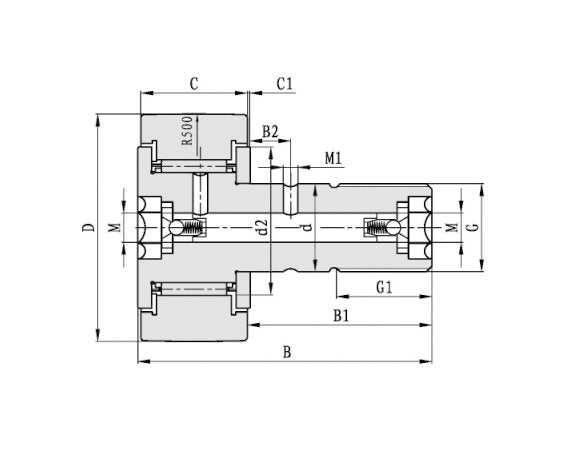

Product Specifications
Basic Load Rating Dynamic Cr Basic Load Rating
16500 kN
Basic Load Rating Static Cor Basic Load Rating
31500 kN
Bearing Designation Bearing Designation Dimension B3
22 mm
Bearing Designation Bearing Designation Dimension E
1 mm
Bearing Designation Bore Diameter
28 mm
Boundary Dimensions Boundary Dimension C1
0.8 mm
Boundary Dimensions Boundary Dimension D2
31 mm
Boundary Dimensions Boundary Dimension G
M20X1.5 mm
Boundary Dimensions Boundary Dimension G1
21 mm
Boundary Dimensions Boundary Dimension M
8 mm
Boundary Dimensions Boundary Dimension M1
4 mm
Inner Ring Bore Diameter
20 mm
Inner Ring Dimension D2
34.5 mm
Inner Ring Dimension Di
30.2 mm
Inner Ring Overall Bearing Width
66 mm
Outer Ring Dimension C
24 mm
Outer Ring Dimension D2
36.5 mm
Outer Ring Dimension De
40.2 mm
Outer Ring Dimension Le
16 mm
Outer Ring Outside Diameter
52 mm
Roller Dimension I
2 mm
Roller Dimension Lw
12 mm
Roller Dimension Z
20 mm
Specifications Dimension B1
40.5 mm
Specifications Dimension B2
9 mm
Specifications Dynamic Cr Force
20500 N
Specifications Grease Limiting Speed
2100 rpm
Specifications Mass
450 g
Specifications Nut Tightening Torque Ma
205 N·m
Specifications Static Cor Force
33000 N
Specifications Type
Without Eccentric Collar
Thrust Ring Inner Diameter Id
20.15 mm
Thrust Ring Outer Diameter Od
34.5 mm
Thrust Ring Step
31 mm
Thrust Ring Width
4.75 mm
