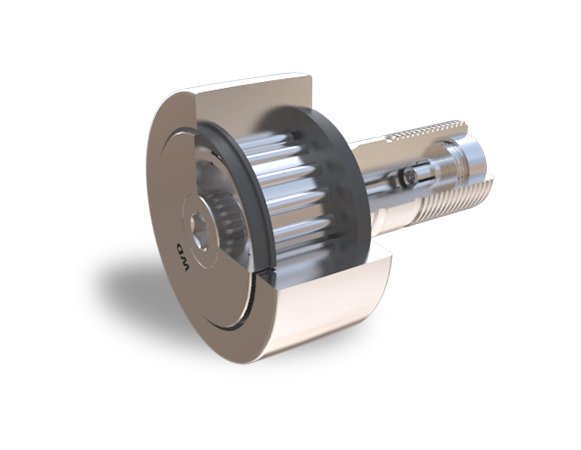

KR/NUKR Series Cam Followers
KR/NUKR Series Cam Followers
SKU:CAM-2db2c2
N/A
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
KR/NUKR Series Cam Followers
$49.99
Quantity: 1
Claim Your Seller Account
KR/NUKR Series Cam Followers
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

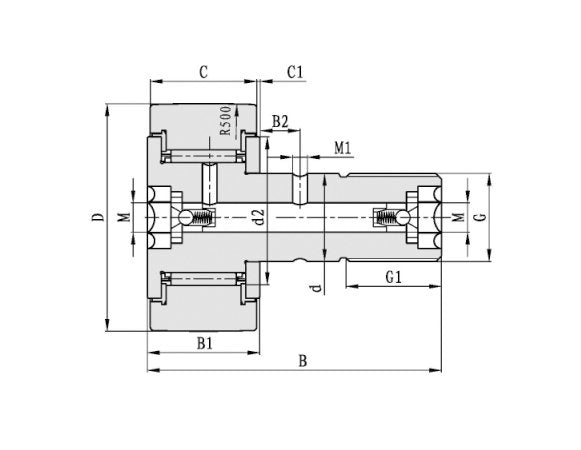

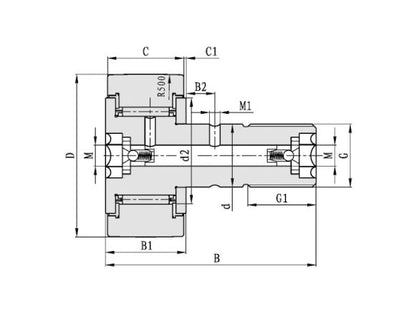

Product Specifications
Basic Load Rating Dynamic Cr Basic Load Rating
3220 kN
Basic Load Rating Static Cor Basic Load Rating
3100 kN
Bearing Designation Bearing Designation Dimension B3
9 mm
Bearing Designation Bearing Designation Dimension E
0.5 mm
Bearing Designation Bore Diameter
11 mm
Boundary Dimensions Boundary Dimension C1
0.6 mm
Boundary Dimensions Boundary Dimension D2
14 mm
Boundary Dimensions Boundary Dimension G
M8 mm
Boundary Dimensions Boundary Dimension G1
10 mm
Boundary Dimensions Boundary Dimension M
4(5) mm
Inner Ring Bore Diameter
8 mm
Inner Ring Overall Bearing Width
32 mm
Outer Ring Dimension C
11 mm
Outer Ring Outside Diameter
19 mm
Specifications Dimension B1
20 mm
Specifications Dynamic Cr Force
3820 N
Specifications Grease Limiting Speed
11300 rpm
Specifications Mass
31.2 g
Specifications Nut Tightening Torque Ma
6.8 N·m
Specifications Static Cor Force
4160 N
Specifications Type
With Eccentric Collar
Thrust Ring Outer Diameter Od
19 mm
