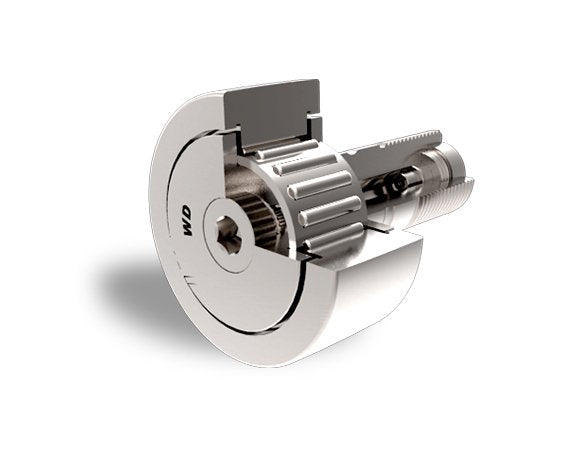

KR/NUKR Series Cam Followers
KR/NUKR Series Cam Followers
SKU:CAM-99644c
N/A
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
KR/NUKR Series Cam Followers
$49.99
Quantity: 1
Claim Your Seller Account
KR/NUKR Series Cam Followers
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

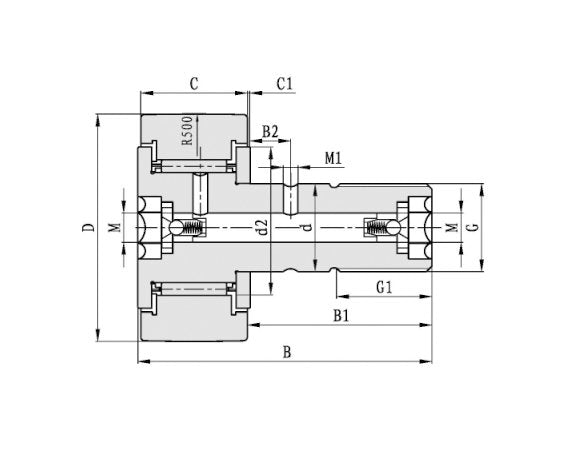

Product Specifications
Basic Load Rating Dynamic Cr Basic Load Rating
10800 kN
Basic Load Rating Static Cor Basic Load Rating
22500 kN
Bearing Designation Bearing Designation Dimension B3
18 mm
Bearing Designation Bearing Designation Dimension E
1 mm
Bearing Designation Bore Diameter
24 mm
Boundary Dimensions Boundary Dimension C1
0.8 mm
Boundary Dimensions Boundary Dimension D2
37 mm
Boundary Dimensions Boundary Dimension G
M20X1.5 mm
Boundary Dimensions Boundary Dimension G1
21 mm
Boundary Dimensions Boundary Dimension M
8 mm
Boundary Dimensions Boundary Dimension M1
4 mm
Inner Ring Bore Diameter
20 mm
Inner Ring Dimension D2
30 mm
Inner Ring Dimension Di
25.45 mm
Inner Ring Overall Bearing Width
66 mm
Outer Ring Dimension C
24 mm
Outer Ring Dimension D2
32 mm
Outer Ring Dimension De
35.45 mm
Outer Ring Dimension Le
16 mm
Outer Ring Outside Diameter
47 mm
Roller Dimension I
4 mm
Roller Dimension Lw
12 mm
Roller Dimension Z
19 mm
Specifications Dimension B1
40.5 mm
Specifications Dimension B2
9 mm
Specifications Dynamic Cr Force
10500 N
Specifications Grease Limiting Speed
3990 rpm
Specifications Mass
380 g
Specifications Nut Tightening Torque Ma
101 N·m
Specifications Static Cor Force
21000 N
Specifications Type
Without Eccentric Collar
Thrust Ring Inner Diameter Id
20.15 mm
Thrust Ring Outer Diameter Od
30 mm
Thrust Ring Step
27 mm
Thrust Ring Width
4.75 mm
