KraftPowercon ControlKraft Digital Programmable Remote Control Unit
KraftPowercon ControlKraft Digital Programmable Remote Control Unit
SKU:FLE-d9907d
Enhance process control with KraftPowercon ControlKraft Remote Unit. Features 4 programs, Dual Mode support, and 16-bit CPU for superior reliability.
Regular price
$849.99
Regular price
Sale price
$849.99
Unit price
per
Initiate Order
KraftPowercon ControlKraft Digital Programmable Remote Control Unit
$849.99
Quantity: 1
Claim Your Seller Account
KraftPowercon ControlKraft Digital Programmable Remote Control Unit
$849.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

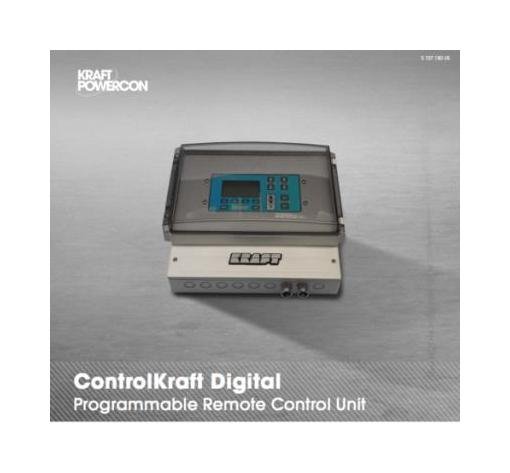

The ControlKraft Digital Programmable Remote Control Unit by KraftPowercon is a versatile solution designed to meet the stringent requirements of institutional and government buyers. With 4 programs, 8 steps per program, and precision time control from 0 to 30,000 seconds per step, this unit ensures accurate process management. It supports Dual Mode operation, allowing the independent execution of two programs simultaneously. Featuring a 16-bit Microprocessor, IP 54 protection, and transparent enclosure, it guarantees reliable performance in varied environments. The ControlKraft unit allows for real-time editing of programs, visual/audio indicators, and easy program initiation via keypad or external switch, making it an ideal choice for industrial applications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Amp Hour Limit
0 to 999999 Ah
Specifications Central Processing Unit Cpu
16-bit Microprocessor
Specifications Dimensions
W x D x H = 14.0" x 6.3" x 12.4"
Specifications End Of Process
Current and voltage are controlled at programmable levels. Indication can also be provided on Digital l/O as option. Indication is given on display. Buzzer & LED.
Specifications Features And Benefits
Indication of current program step on display.Indication of process time on display.Indication of remaining process time on display.Visual and audio indicator.Pauses process at current program step and allows it to be resumed later.In DUAL mode two different or identical programs can be run independently of each other. The programs can be started and stopped independently.Programs can be edited while running. The changes take effect the next time the program is run.Programs can be started from the keypad, by serial communication or by an external switch (requires serial communication option or digital inputs option).
Specifications Manufacturer
KraftPowercon
Specifications Number Of Programs
4
Specifications Operating Temperature
32 to 104 F
Specifications Protection Class
Enclosure with transparent front cover, IP 54
Specifications Relative Humidity
10 to 90%
Specifications Resolution For Amp Hour Limit
1 Ah
Specifications Resolution For Time Per Program Step
1 sec.
Specifications Steps Per Program
8
Specifications Support For Dual Mode
YES
Specifications Support For Programmable Real Time Unit Pru
YES (requires polarity reversal option)
Specifications Time Between Updates
100 ms
Specifications Time Per Program Step
0 to 30000 sec.
