KSF Blank QC Top Jaws for Precision Machining
KSF Blank QC Top Jaws for Precision Machining
SKU:KSF-784bf8
Enhance precision machining with heat-treatable A-2 steel Blank QC Top Jaws for KSF Power Chucks.
Regular price
$159.99
Regular price
Sale price
$159.99
Unit price
per
Initiate Order
KSF Blank QC Top Jaws for Precision Machining
$159.99
Quantity: 1
Claim Your Seller Account
KSF Blank QC Top Jaws for Precision Machining
$159.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

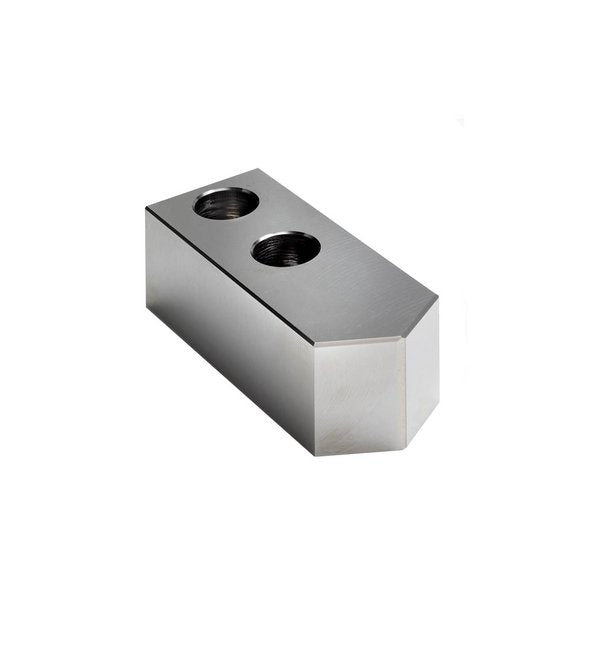

Enhance the precision of your machining operations with our Blank QC Top Jaws designed for KSF Power Chucks. Crafted from high-quality A-2 tool steel, these jaws feature precision jig bored tapered locating holes for exact positioning. Heat treatable with minimal distortion up to Rc 62 hardness. Request special QC Top Jaws for tailored solutions to meet your machining needs efficiently and accurately.

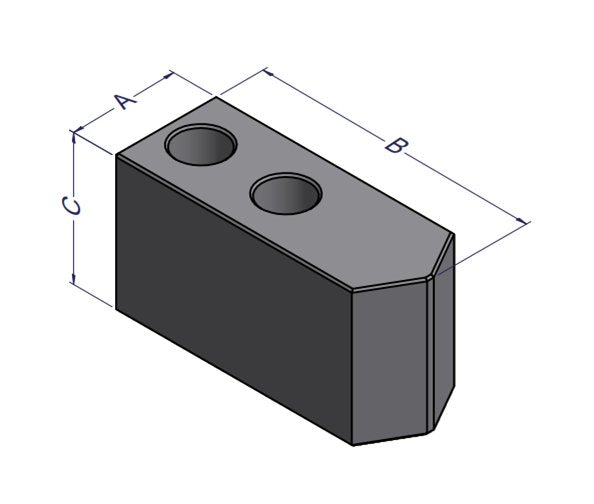

Product Specifications
Specifications A Dimension
1.75 in | 44.5 mm
Specifications B Dimension
4.70 in | 119.4 mm
Specifications Chuck
KSF-10/QC
Specifications C Dimension
3.00 in | 76.2 mm
Specifications Material
A-2
Specifications Weight
6.90 lb | 2.7 kg
