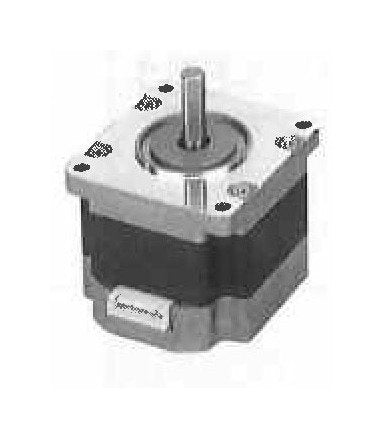

KT Series 3 Phase Hybrid Stepping Motor
KT Series 3 Phase Hybrid Stepping Motor
SKU:STE-64ffd7
Enhanced drive efficiency and precision with the KT Series 3 Phase Hybrid Stepping Motor, delivering high torque, ultra-low vibration, and noise levels for reliable motion control.
Regular price
$179.99
Regular price
Sale price
$179.99
Unit price
per
Initiate Order
KT Series 3 Phase Hybrid Stepping Motor
$179.99
Quantity: 1
Claim Your Seller Account
KT Series 3 Phase Hybrid Stepping Motor
$179.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The KT Series 3 Phase Hybrid Stepping Motor features a simplified drive circuit with star winding connection for ease of use. Delivering high torque at low speeds through micro-step drivers, this motor ensures ultra-low vibration and noise levels. With step angle selection options of 1/1, 1/2, 1/4, or 1/8, meet precise motion control needs with efficiency and reliability. Built to uphold industry standards, this stepper motor is ideal for a wide range of applications requiring professional-grade performance.
Product Specifications
Additional Information 0
a2037.jpg | a2073.jpg | a2489.jpg | a2490.jpg | a2506.jpg | Explanation of Dynamic Torque Curves | KT60K.jpg | KT60KM1-551-VIBRATION.jpg
Customize 0
Custom Designs
Dimensions 0
Specifications Allowable Temperature Rise
70 ºK
Specifications Current Per 2 Phase
3.8 A
Specifications Detent Torque
2.6 oz·in | 18 mN·m
Specifications Dielectric Strength
500 VAC, 50 HZ, 1 min.
Specifications Drive Method
Bipolar
Specifications Holding Torque
45.3 oz·in | 320 mN·m
Specifications Inductance2 Phase
0.8 mH
Specifications Insulation Class
Jis Class E (120ºC/248ºF) (UL Value : Class B 130ºC/266ºF)
Specifications Insulation Resistance Motor Section
500 VDC, 100 MO min.
Specifications Motor Frame Size
NEMA 23
Specifications No Of Phases
3
Specifications Operating Temperature Range
0 to 50 ºC
Specifications Product Type
Stepper Motor
Specifications Rotor Inertia
170 g·cm² | 0.93 oz·in²
Specifications Series
3 Phase KT
Specifications Standard Size
60 x 47 mm | 2.36 x 1.85 in.
Specifications Step Angle
1.2 deg./step
Specifications Type
KT Series, 3 phase Hybrid Stepping Motor
Specifications Voltage
2.09 V
Specifications Weight
550 g | 1.2 lb
Specifications Winding Resistance2 Phase
0.55 Ω
Torque Curve 0
