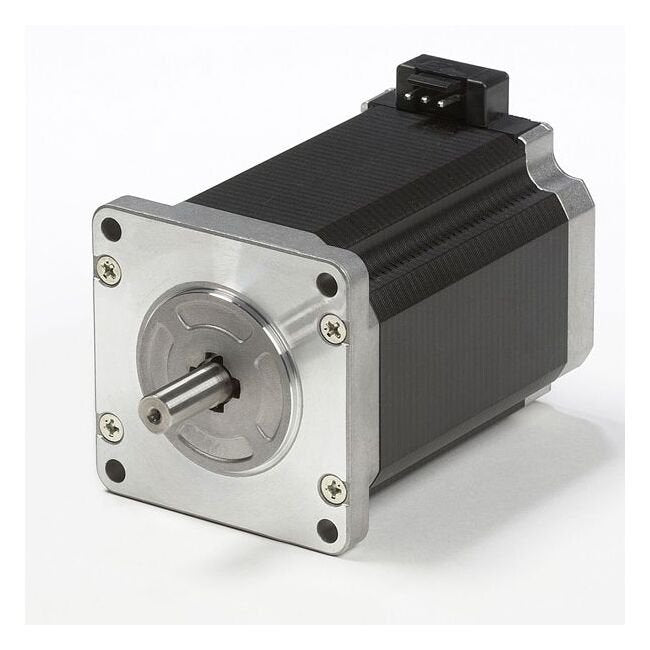

KT Series 3 Phase Hybrid Stepping Motor
KT Series 3 Phase Hybrid Stepping Motor
SKU:STE-3a339d
High-performance KT Series 3 Phase Hybrid Stepping Motor with precise step angle, high torque, low vibration, and NEMA 23 frame size
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
KT Series 3 Phase Hybrid Stepping Motor
$129.99
Quantity: 1
Claim Your Seller Account
KT Series 3 Phase Hybrid Stepping Motor
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The KT Series 3 Phase Hybrid Stepping Motor is designed to deliver exceptional performance in a wide range of applications. With a precise step angle of 1.2 degrees/step, this stepper motor ensures accurate and reliable operation. It offers high torque at low speeds, reduced vibration, and minimal noise levels thanks to the micro-step driver technology. The motor features a NEMA 23 frame size, holding torque of 238 oz·in, and operates within an insulation class of Jis Class E (130°C/266°F). Whether it's for industrial automation or CNC machinery, this motor is a versatile choice that meets demanding requirements.
Product Specifications
Additional Information 0
a2077.jpg | a2489.jpg | a2490.jpg | a2506.jpg | Explanation of Dynamic Torque Curves | KT60K.jpg | KT60RM1-551-.jpg | KT60RM1-551-VIBRATION.jpg
Customize 0
Custom Designs
Dimensions 0
Specifications Allowable Temperature Rise
80 ºK
Specifications Current Per 2 Phase
3.0 A
Specifications Detent Torque
17.7 oz·in | 125 mN·m
Specifications Dielectric Strength
500 VAC, 50 HZ, 1 min.
Specifications Drive Method
Bipolar
Specifications Holding Torque
238 oz·in | 1680 mN·m
Specifications Inductance2 Phase
3.2 mH
Specifications Insulation Class
Jis Class E (130ºC/266ºF) (UL Value : Class B 130ºC/266ºF)
Specifications Insulation Resistance Motor Section
500 VDC, 100 MO min.
Specifications Motor Frame Size
NEMA 23
Specifications No Of Phases
3
Specifications Operating Temperature Range
-10 to 50 ºC
Specifications Product Type
Stepper Motor
Specifications Rotor Inertia
840 g·cm² | 4.6 oz·in²
Specifications Series
3 Phase KT
Specifications Standard Size
60 x 86 mm | 2.36 x 3.37 in.
Specifications Step Angle
1.2 deg./step
Specifications Type
KT Series, 3 phase Hybrid Stepping Motor
Specifications Voltage
6.0 V
Specifications Weight
1340 g | 3.0 lb
Specifications Winding Resistance2 Phase
2.0 Ω
Torque Curve 0
