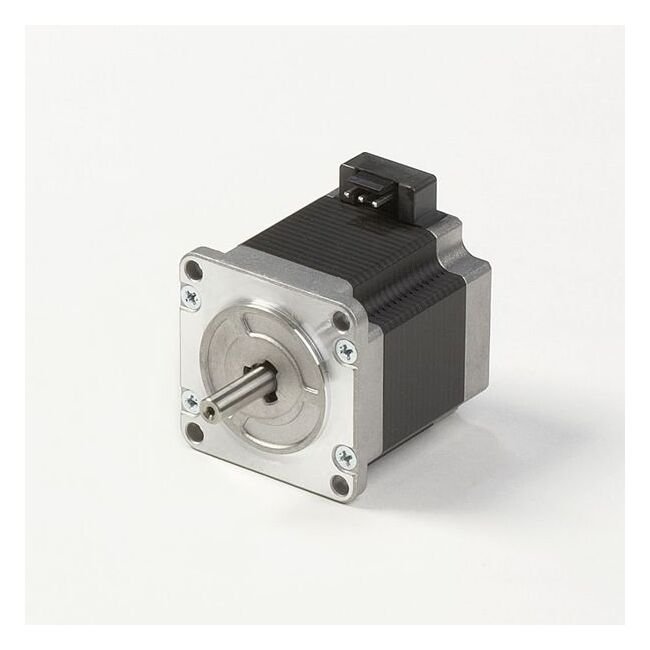

KT Series 3-Phase Hybrid Stepping Motor
KT Series 3-Phase Hybrid Stepping Motor
SKU:STE-9c1d93
Get precision motion control with the KT Series 3-Phase Hybrid Stepping Motor, offering high torque, low vibration, and precise step angle selection.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
KT Series 3-Phase Hybrid Stepping Motor
$89.99
Quantity: 1
Claim Your Seller Account
KT Series 3-Phase Hybrid Stepping Motor
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The KT Series 3-Phase Hybrid Stepping Motor is engineered to simplify drive circuits by utilizing star winding connections. It delivers high torque at low speeds through a micro-step driver, ensuring ultra-low vibration and noise levels. Featuring a step angle selection of 1/1, 1/2, 1/4, or 1/8, this motor is ideal for precision applications requiring reliable performance. With a NEMA 23 frame size, high holding torque, and optimized dimensions, this stepper motor is designed to meet the stringent demands of institutional and government procurement standards.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Additional Information 0
a2064.jpg | a2489.jpg | a2490.jpg | a2506.jpg | Explanation of Dynamic Torque Curves | KT Series, 3 phase Hybrid Stepping Motor (KT50KM1-551) | KT50KM1-551-VIBRATION.jpg | KT60K.jpg
Customize 0
Custom Designs
Dimensions 0
Specifications Allowable Temperature Rise
80 ºK
Specifications Current Per 2 Phase
3.0 A
Specifications Detent Torque
4.2 oz·in | 30 mN·m
Specifications Dielectric Strength
500 VAC, 50 HZ, 1 min.
Specifications Drive Method
Bipolar
Specifications Holding Torque
62.3 oz·in | 440 mN·m
Specifications Inductance2 Phase
1.6 mH
Specifications Insulation Class
Jis Class E (30ºC/266ºF) (UL Value : Class B 130ºC/266ºF)
Specifications Insulation Resistance Motor Section
500 VDC, 100 MO min.
Specifications Motor Frame Size
NEMA 23
Specifications No Of Phases
3
Specifications Operating Temperature Range
-10 to 50 ºC
Specifications Product Type
Stepper Motor
Specifications Rotor Inertia
120 g·cm² | 0.66 oz·in²
Specifications Series
3 Phase KT
Specifications Standard Size
50 x 51 mm | 1.97 x 2.02 in.
Specifications Step Angle
1.2 deg./step
Specifications Type
KT Series, 3 phase Hybrid Stepping Motor
Specifications Voltage
3.9 V
Specifications Weight
500 g | 1.1 lb
Specifications Winding Resistance2 Phase
1.30 Ω
Torque Curve 0
