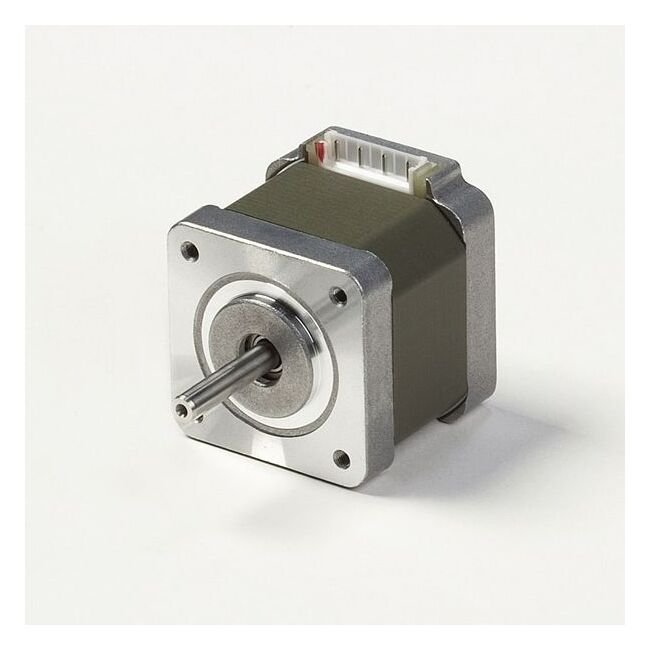

KT Series 3-Phase Hybrid Stepping Motor (Nema 17)
KT Series 3-Phase Hybrid Stepping Motor (Nema 17)
SKU:STE-61b8c7
High-performance 3-phase Hybrid Stepping Motor (Nema 17) with 0.6° step angle, ideal for precise and low-noise motion control.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
KT Series 3-Phase Hybrid Stepping Motor (Nema 17)
$59.99
Quantity: 1
Claim Your Seller Account
KT Series 3-Phase Hybrid Stepping Motor (Nema 17)
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The KT Series 3-Phase Hybrid Stepping Motor is a cutting-edge solution designed for precision and efficiency. With a low step angle of 0.6 degrees/step, this motor ensures accurate positioning in diverse applications. Boasting a NEMA 17 frame size and reliable 3-phase design, it delivers high torque at low speeds, reducing vibrations and noise levels significantly. The motor's star winding connection simplifies drive circuitry while the micro-step driver allows for precise step angle selection (1/1, 1/2, 1/4, or 1/8). Ideal for applications requiring smooth motion control and minimal maintenance, this motor is a standout choice for both consumer and institutional buyers.
Product Specifications
Additional Information 0
a2052.jpg | a2489.jpg | a2490.jpg | a2506.jpg | Explanation of Dynamic Torque Curves | KT42JM06-551-.jpg | KT42JM06-551-VIBRATION.jpg | KT60K.jpg
Customize 0
Custom Designs
Dimensions 0
Specifications Allowable Temperature Rise
70 ºK
Specifications Current Per 2 Phase
2.4 A
Specifications Detent Torque
1.1 oz·in | 8 mN·m
Specifications Dielectric Strength
500 VAC, 50 HZ, 1 min.
Specifications Drive Method
Bipolar
Specifications Holding Torque
25.5 oz·in | 180 mN·m
Specifications Inductance2 Phase
1.3 mH
Specifications Insulation Class
Jis Class E (120ºC/248ºF) (UL Value : Class B 130ºC/266ºF)
Specifications Insulation Resistance Motor Section
500 VDC, 100 MO min.
Specifications Motor Frame Size
NEMA 17
Specifications No Of Phases
3
Specifications Operating Temperature Range
-10 to 50 ºC
Specifications Product Type
Stepper Motor
Specifications Rotor Inertia
60 g·cm² | 0.33 oz·in²
Specifications Series
3 Phase KT
Specifications Standard Size
42 x 40 mm | 1.65 x 1.58 in.
Specifications Step Angle
0.6 deg./step
Specifications Type
KT Series, 3 phase Hybrid Stepping Motor
Specifications Voltage
3.12 V
Specifications Weight
310 g | 0.68 lb
Specifications Winding Resistance2 Phase
1.30 Ω
Torque Curve 0
KT42JM06-551 ST CURVE.jpg
