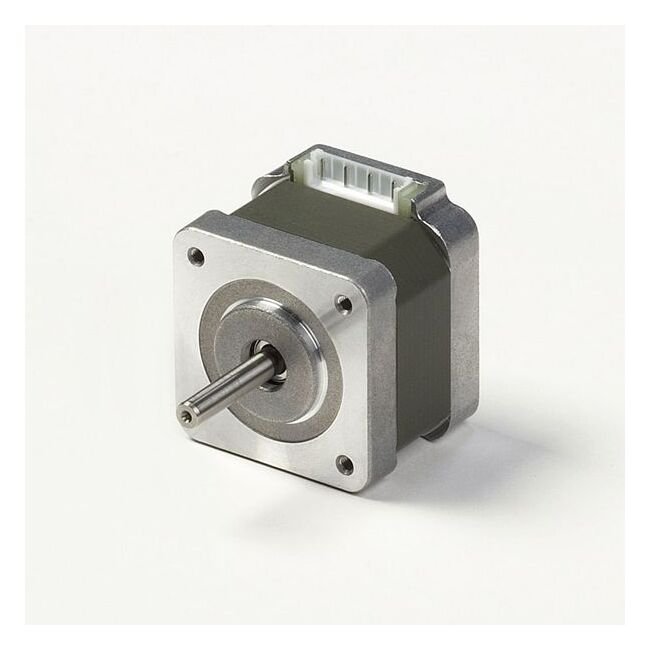

KT Series 3-Phase Hybrid Stepping Motor NEMA 17
KT Series 3-Phase Hybrid Stepping Motor NEMA 17
SKU:STE-2f1567
High-torque 3-Phase Hybrid Stepping Motor with 0.6° step angle for precise motion control in industrial automation applications.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
KT Series 3-Phase Hybrid Stepping Motor NEMA 17
$49.99
Quantity: 1
Claim Your Seller Account
KT Series 3-Phase Hybrid Stepping Motor NEMA 17
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The KT Series 3-Phase Hybrid Stepping Motor offers exceptional performance in industrial automation applications. Featuring a 0.6-degree step angle, this NEMA 17 motor provides high torque at low speeds with ultra-low vibration and noise levels. The simplified drive circuit enables easy operation, and the motor's design allows for micro-step driver compatibility, offering step angle selections of 1/1, 1/2, 1/4, or 1/8. With a voltage of 2.88V, current per 2 phases of 2.4A, and a holding torque of 12.7 oz·in, this motor is ideal for precision motion control systems.
Product Specifications
Additional Information 0
a2052.jpg | a2489.jpg | a2490.jpg | a2506.jpg | Explanation of Dynamic Torque Curves | KT42HM06-551-.jpg | KT42HM06-551-VIBRATION.jpg | KT60K.jpg
Customize 0
Custom Designs
Dimensions 0
Specifications Allowable Temperature Rise
70 ºK
Specifications Current Per 2 Phase
2.4 A
Specifications Detent Torque
0.8 oz·in | 6 mN·m
Specifications Dielectric Strength
500 VAC, 50 HZ, 1 min.
Specifications Drive Method
Bipolar
Specifications Holding Torque
12.7 oz·in | 90 mN·m
Specifications Inductance2 Phase
0.8 mH
Specifications Insulation Class
Jis Class E (120ºC/248ºF) (UL Value : Class B 130ºC/266ºF)
Specifications Insulation Resistance Motor Section
500 VDC, 100 MO min.
Specifications Motor Frame Size
NEMA 17
Specifications No Of Phases
3
Specifications Operating Temperature Range
-10 to 50 ºC
Specifications Product Type
Stepper Motor
Specifications Rotor Inertia
42 g·cm² | 0.23 oz·in²
Specifications Series
3 Phase KT
Specifications Standard Size
42 x 34 mm | 1.65 x 1.34 in.
Specifications Step Angle
0.6 deg./step
Specifications Type
KT Series, 3 phase Hybrid Stepping Motor
Specifications Voltage
2.88 V
Specifications Weight
210 g | 0.46 lb
Specifications Winding Resistance2 Phase
1.2 Ω
Torque Curve 0
KT42HM06-551 ST CURVE.jpg
