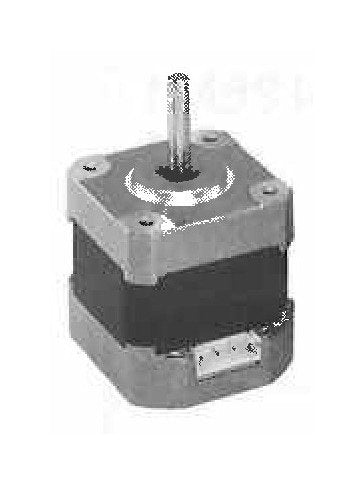

KT Series 3-Phase Hybrid Stepping Motor, NEMA 17
KT Series 3-Phase Hybrid Stepping Motor, NEMA 17
SKU:STE-0f15b8
High torque, low vibration 3-Phase Hybrid Stepping Motor for precise motion control. NEMA 17 standard. Ideal for demanding applications.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
KT Series 3-Phase Hybrid Stepping Motor, NEMA 17
$59.99
Quantity: 1
Claim Your Seller Account
KT Series 3-Phase Hybrid Stepping Motor, NEMA 17
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The KT Series 3-Phase Hybrid Stepping Motor is a powerhouse of efficiency and precision. This motor boasts a simplified drive circuit with star winding connection, delivering high torque at low speeds thanks to its micro-step driver. Experience ultra-low vibration and noise levels while easily adjusting motor step angles in 1/1, 1/2, 1/4, or 1/8 increments. With a NEMA 17 frame size and compliance with industry standards, this motor is ideal for demanding applications requiring reliability and performance.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Additional Information 0
a2032.jpg | a2061.jpg | a2489.jpg | a2490.jpg | a2506.jpg | Explanation of Dynamic Torque Curves | KT42JM4-551-VIBRATION.jpg | KT60K.jpg
Customize 0
Custom Designs
Dimensions 0
Specifications Allowable Temperature Rise
70 ºK
Specifications Current Per 2 Phase
1.2 A
Specifications Detent Torque
2.8 oz·in | 19.6 mN·m
Specifications Dielectric Strength
500 VAC, 50 HZ, 1 min.
Specifications Drive Method
Bipolar
Specifications Holding Torque
25 oz·in | 180 mN·m
Specifications Inductance2 Phase
8.7 mH
Specifications Insulation Class
Jis Class E (120ºC/248ºF) (UL Value : Class B 130ºC/266ºF)
Specifications Insulation Resistance Motor Section
500 VDC, 100 MO min.
Specifications Motor Frame Size
NEMA 17
Specifications No Of Phases
3
Specifications Operating Temperature Range
0 to 50 ºC
Specifications Product Type
Stepper Motor
Specifications Rotor Inertia
60 g·cm² | 0.33 oz·in²
Specifications Series
3 Phase KT
Specifications Standard Size
42 x 40 mm | 1.65 x 1.58 in.
Specifications Step Angle
3.75 deg./step
Specifications Type
KT Series, 3 phase Hybrid Stepping Motor
Specifications Voltage
5.16 V
Specifications Weight
240 g | 0.53 lb
Specifications Winding Resistance2 Phase
4.3 Ω
Torque Curve 0
