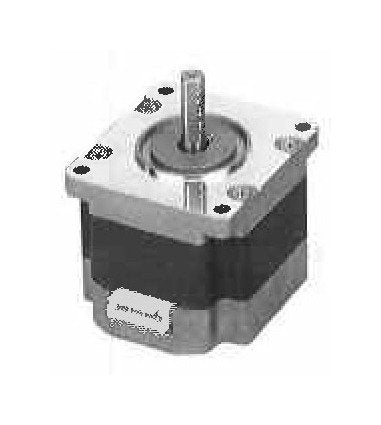

KT Series 3-Phase Hybrid Stepping Motor Nema 23
KT Series 3-Phase Hybrid Stepping Motor Nema 23
SKU:STE-2a34aa
High-performance 3-phase Hybrid Stepping Motor, 0.6-degree step angle, ideal for industrial applications
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
KT Series 3-Phase Hybrid Stepping Motor Nema 23
$59.99
Quantity: 1
Claim Your Seller Account
KT Series 3-Phase Hybrid Stepping Motor Nema 23
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The KT Series 3-phase Hybrid Stepping Motor, with a precise 0.6-degree step angle, offers exceptional performance for industrial applications. Featuring a star winding connection for simplified drive circuitry, this motor delivers high torque at low speeds with ultra-low vibration and noise levels, thanks to the micro-step driver. With selectable step angles of 1/1, 1/2, 1/4, or 1/8, this motor provides flexibility and efficiency in motion control systems. Designed to meet the NEMA 23 motor frame size and boasting a rugged construction, this stepper motor ensures reliable operation in demanding environments.
Product Specifications
Additional Information 0
a2035.jpg | a2069.jpg | a2489.jpg | a2490.jpg | a2506.jpg | Explanation of Dynamic Torque Curves | KT60K.jpg | KT60KM06-551 VIBRATION.jpg
Customize 0
Custom Designs
Dimensions 0
Specifications Allowable Temperature Rise
70 ºK
Specifications Current Per 2 Phase
3.8 A
Specifications Detent Torque
2.8 oz·in | 20 mN·m
Specifications Dielectric Strength
500 VAC, 50 HZ, 1 min.
Specifications Drive Method
Bipolar
Specifications Holding Torque
69 oz·in | 500 mN·m
Specifications Inductance2 Phase
1.0 mH
Specifications Insulation Class
Jis Class E (120ºC/248ºF) (UL Value : Class B 130ºC/266ºF)
Specifications Insulation Resistance Motor Section
500 VDC, 100 MO min.
Specifications Motor Frame Size
NEMA 23
Specifications No Of Phases
3
Specifications Operating Temperature Range
0 to 50 ºC
Specifications Product Type
Stepper Motor
Specifications Rotor Inertia
170 g·cm² | 0.93 oz·in²
Specifications Series
3 Phase KT
Specifications Standard Size
60 x 47 mm | 2.36 x 1.85 in.
Specifications Step Angle
0.6 deg./step
Specifications Type
KT Series, 3 phase Hybrid Stepping Motor
Specifications Voltage
2.09 V
Specifications Weight
550 g | 1.2 lb
Specifications Winding Resistance2 Phase
0.55 Ω
Torque Curve 0
KT60KM06-551 ST CURVE.jpg
