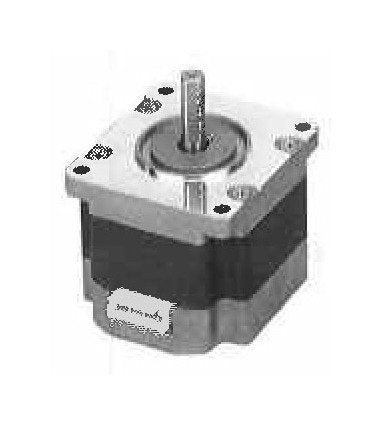

KT Series 3-Phase Hybrid Stepping Motor Nema 23 - 0.6°/Step
KT Series 3-Phase Hybrid Stepping Motor Nema 23 - 0.6°/Step
SKU:STE-aa81c4
Experience precision and efficiency with the KT Series 3-Phase Hybrid Stepping Motor - ideal for demanding motion control applications.
Regular price
$69.99
Regular price
Sale price
$69.99
Unit price
per
Initiate Order
KT Series 3-Phase Hybrid Stepping Motor Nema 23 - 0.6°/Step
$69.99
Quantity: 1
Claim Your Seller Account
KT Series 3-Phase Hybrid Stepping Motor Nema 23 - 0.6°/Step
$69.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The KT Series 3-Phase Hybrid Stepping Motor offers simplified drive circuitry, high torque at low speeds, ultra-low vibration, and low noise for precise motion control applications. With a step angle of 0.6 degrees/step and a holding torque of 42 oz·in, this NEMA 23 motor ensures reliable performance. Ideal for applications requiring micro-step drivers with selectable step angles, this motor excels in efficiency and accuracy, meeting the demanding requirements of industrial and institutional buyers.
Product Specifications
Additional Information 0
a2035.jpg | a2069.jpg | a2489.jpg | a2490.jpg | a2506.jpg | Explanation of Dynamic Torque Curves | KT60K.jpg | KT60KM06-751 VIBRATION.jpg
Customize 0
Custom Designs
Dimensions 0
Specifications Allowable Temperature Rise
70 ºK
Specifications Current Per 2 Phase
3.8 A
Specifications Detent Torque
1.4 oz·in | 10 mN·m
Specifications Dielectric Strength
500 VAC, 50 HZ, 1 min.
Specifications Drive Method
Bipolar
Specifications Holding Torque
42 oz·in | 300 mN·m
Specifications Inductance2 Phase
1.0 mH
Specifications Insulation Class
Jis Class E (120ºC/248ºF) (UL Value : Class B 130ºC/266ºF)
Specifications Insulation Resistance Motor Section
500 VDC, 100 MO min.
Specifications Motor Frame Size
NEMA 23
Specifications No Of Phases
3
Specifications Operating Temperature Range
0 to 50 ºC
Specifications Product Type
Stepper Motor
Specifications Rotor Inertia
170 g·cm² | 0.93 oz·in²
Specifications Series
3 Phase KT
Specifications Standard Size
60 x 47 mm | 2.36 x 1.85 in.
Specifications Step Angle
0.6 deg./step
Specifications Type
KT Series, 3 phase Hybrid Stepping Motor
Specifications Voltage
2.09 V
Specifications Weight
550 g | 1.2 lb
Specifications Winding Resistance2 Phase
.055 Ω
Torque Curve 0
KT60KM06-751 ST CURVE.jpg
