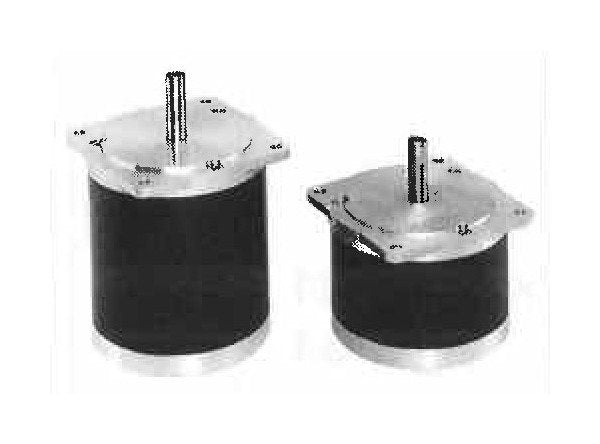

KT Series 3-Phase Hybrid Stepping Motor NEMA 34
KT Series 3-Phase Hybrid Stepping Motor NEMA 34
SKU:STE-56b0dd
High-performance 3-phase hybrid stepping motor with precision control for industrial automation.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
KT Series 3-Phase Hybrid Stepping Motor NEMA 34
$129.99
Quantity: 1
Claim Your Seller Account
KT Series 3-Phase Hybrid Stepping Motor NEMA 34
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The KT Series 3-phase hybrid stepping motor offers exceptional performance with its star winding connection for simplified drive circuits, delivering high torque at low speeds. Equipped with a micro-step driver for ultra-low vibration and noise levels, this motor allows for precise motor step angle selection, making it ideal for industrial automation and robotics applications. With a NEMA 34 motor frame size and double shaft design, the motor provides reliable and efficient operation. Additionally, the motor meets stringent industry standards for insulation, temperature range, torque, and drive method, ensuring compliance and performance.
Product Specifications
Additional Information 0
a2040.jpg | a2079.jpg | a2489.jpg | a2490.jpg | a2506.jpg | Explanation of Dynamic Torque Curves | KT60K.jpg | KT86LM1-3.jpg
Customize 0
Custom Designs
Dimensions 0
Specifications Allowable Temperature Rise
70 ºK
Specifications Current Per 2 Phase
3.0 A
Specifications Detent Torque
13.9 oz·in | 0.1 mN·m
Specifications Dielectric Strength
500 VAC, 50 HZ, 1 min.
Specifications Drive Method
Bipolar
Specifications Holding Torque
278 oz·in | 2000 mN·m
Specifications Inductance2 Phase
18.0 mH
Specifications Insulation Class
Jis Class E (120ºC/248ºF) (UL Value : Class B 130ºC/266ºF)
Specifications Insulation Resistance Motor Section
500 VDC, 100 MO min.
Specifications Motor Frame Size
NEMA 34
Specifications No Of Phases
3
Specifications Operating Temperature Range
0 to 50 ºC
Specifications Product Type
Stepper Motor
Specifications Rotor Inertia
670 g·cm² | 3.67 oz·in²
Specifications Series
3 Phase KT
Specifications Shaft Type
Double Shaft
Specifications Standard Size
86 x 61 mm | 3.38 x 2.40 in.
Specifications Step Angle
0.6 deg./step
Specifications Type
KT Series, 3 phase Hybrid Stepping Motor
Specifications Voltage
5.4 V
Specifications Weight
1.6 g | 3.52 lb
Specifications Winding Resistance2 Phase
1.8 Ω
Torque Curve 0
