Kunkle 125 PSI Bronze Safety Relief Valve - 529 ft³/min Flow Rate
Kunkle 125 PSI Bronze Safety Relief Valve - 529 ft³/min Flow Rate
SKU:KUN-d4dcbb
Reliable Kunkle 125 PSI Safety Relief Valve with 529 ft³/min flow rate - ASME certified for high-performance applications.
Regular price
$249.99
Regular price
Sale price
$249.99
Unit price
per
Initiate Order
Kunkle 125 PSI Bronze Safety Relief Valve - 529 ft³/min Flow Rate
$249.99
Quantity: 1
Claim Your Seller Account
Kunkle 125 PSI Bronze Safety Relief Valve - 529 ft³/min Flow Rate
$249.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

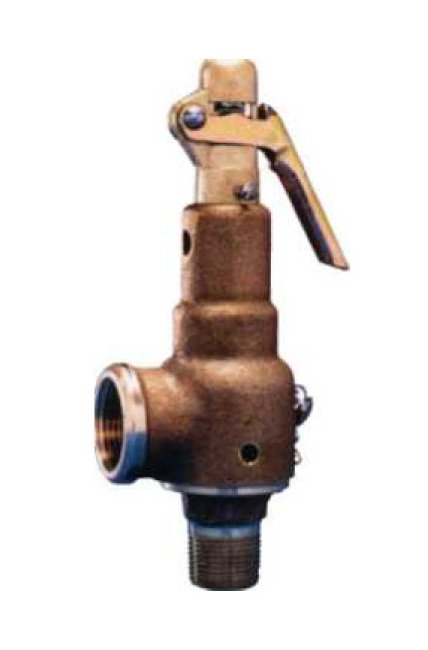

The Kunkle 125 PSI Bronze Safety Relief Valve offers unmatched reliability for high-flow applications. With a top discharge pipe size of 1 inch and a stellar flow rate of 529 cubic feet per minute at 125 PSI, this valve ensures superior safety and performance. Crafted from heavy-duty bronze, this valve is built to last and withstand pressures ranging from 5 to 6500 PSI. The valve features dual control rings for precise opening, a grooved piston disc for reduced friction, and a ball bearing pivot for alignment correction. It meets ASME standards and undergoes rigorous testing to guarantee optimal functionality. Ideal for various applications including steam boilers, pressure vessels, and hydraulic systems, the Kunkle Bronze Safety Relief Valve is a trusted choice for demanding industrial environments.
Product Specifications
Features 0
Valve housing is heavy-duty casting. Wide hex on valve body provides clearance for easy installation. Seats lapped to optical flatness. Dual control rings offer easy adjustability for precise opening with minimum preopen or simmer and exact blowdown control. Ball bearing pivot between disc and spring corrects misalignment and compensates for spring side thrust. Grooved piston type disc reduces sliding area and friction. Heavy-duty lift lever assembly. Every valve is 100% tested/inspected for pressure setting, blowdown and leakage. All adjustments are factory sealed to prevent tampering or dis-assembly.
Pressure Limits Air And Gas Pressure Limit At 300 F
300 psig
Pressure Limits Pressure Limits
Model 6186 to 150 psig Air and Gas 300 ºF | Models 6030, 6130 to 300 psig Steam 422 ºF
Pressure Limits Steam Pressure Limit At 406 F
250 psig
Specifications Applications
Acid | Air and Gas Compressors - Reciprocating or Rotary-Portable or Stationary, Intercoolers and After Coolers | Air Gas | Ammonia and Other Corrosive Liquids | Caustic | Cryogenics | Hydraulic System Relief | Including Tanks, Receivers, Sterilizers and Autoclaves | Liquids | Pressure Vessels - Containing Steam, Air or Non-Hazardous Gas | Steam Boilers and Generators
Specifications Asme Certification
ASME applies to valves 15 psi and up. These are standard hard seat valves.
Specifications Construction Material
Brass | Bronze | Iron | Stainless Steel | Steel
Specifications Flow Rate At 125 Psi Rating
529 ft³/min

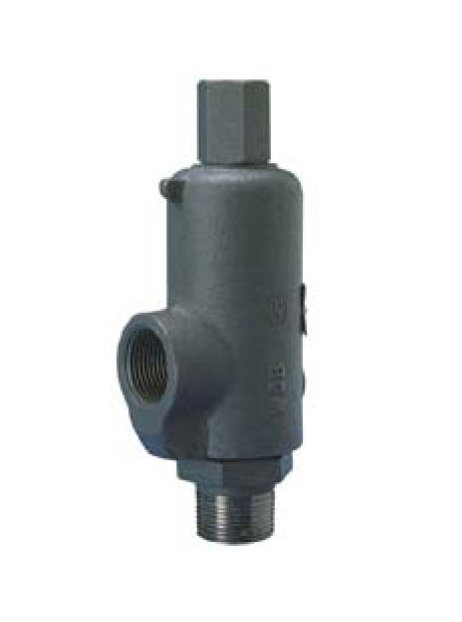

Specifications Other Kunkle Valves Available For Special Applica

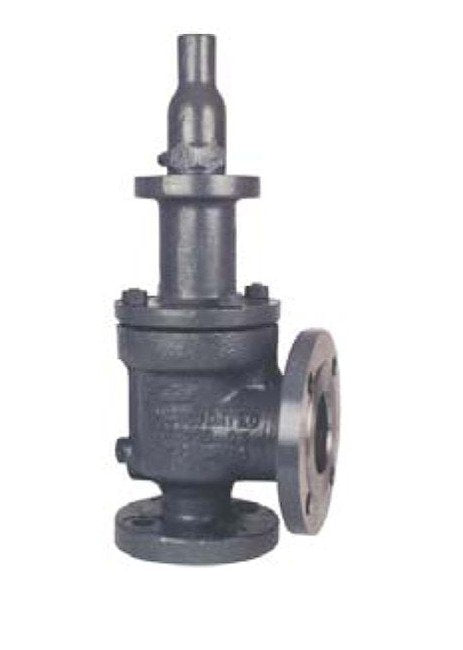

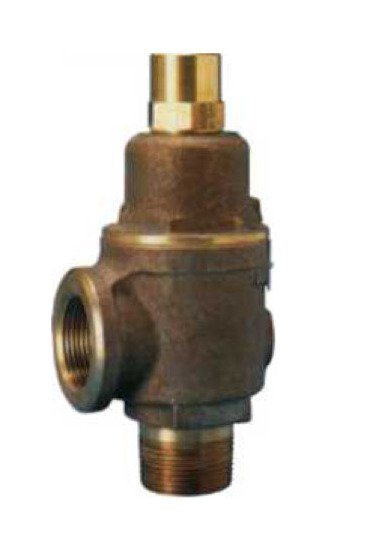

Bronze Liquid Relief Valve | Process/Safety - Relief Valve - Flanged | Process/Safety - Relief Valve - Screwed
Specifications Pressure Range
5 to 6500 psi
Specifications Stock Pressure Set
125 psi | 140 psi | 150 psi | 165 psi | 175 psi | 200 psi
Specifications Top Discharge Pipe Size
1 in
