Kunkle Bronze Safety Relief Valve - High Flow, 1357 ft³/min, 125 psi
Kunkle Bronze Safety Relief Valve - High Flow, 1357 ft³/min, 125 psi
SKU:KUN-b1dc4a
High-flow, heavy-duty Kunkle Bronze Safety Relief Valve: 1357 ft³/min at 125 psi. ASME-certified for industrial safety.
Regular price
$349.99
Regular price
Sale price
$349.99
Unit price
per
Initiate Order
Kunkle Bronze Safety Relief Valve - High Flow, 1357 ft³/min, 125 psi
$349.99
Quantity: 1
Claim Your Seller Account
Kunkle Bronze Safety Relief Valve - High Flow, 1357 ft³/min, 125 psi
$349.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

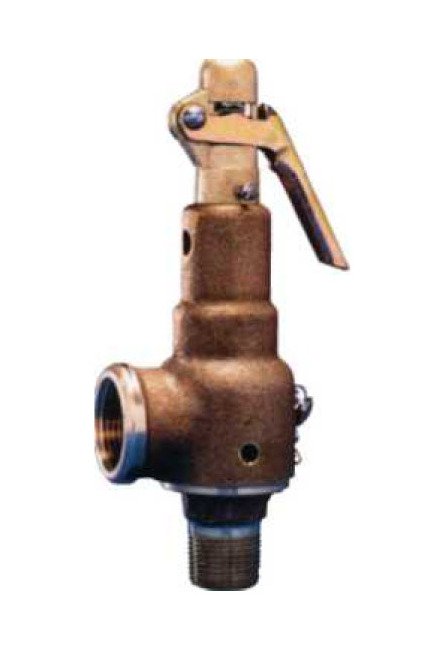

The Kunkle Bronze Safety Relief Valve delivers unparalleled heavy-duty performance with a flow rate of 1357 cubic feet per minute at 125 pounds per square inch. Engineered with a robust construction of brass, bronze, iron, and stainless steel, this valve is suitable for a wide range of applications from steam boilers to cryogenics. Its ASME certification ensures compliance with standards for valves 15 psi and above, providing reliable safety in critical environments. The valve's features include precise opening adjustability, ball bearing pivot for alignment correction, and factory-sealed adjustments to prevent tampering. Trust in Kunkle for top-tier safety relief solutions.
Product Specifications
Features 0
Valve housing is heavy-duty casting. Wide hex on valve body provides clearance for easy installation. Seats lapped to optical flatness. Dual control rings offer easy adjustability for precise opening with minimum preopen or simmer and exact blowdown control. Ball bearing pivot between disc and spring corrects misalignment and compensates for spring side thrust. Grooved piston type disc reduces sliding area and friction. Heavy-duty lift lever assembly. Every valve is 100% tested/inspected for pressure setting, blowdown and leakage. All adjustments are factory sealed to prevent tampering or dis-assembly.
Pressure Limits Air And Gas Pressure Limit At 300 F
300 psig
Pressure Limits Pressure Limits
Model 6186 to 150 psig Air and Gas 300 ºF | Models 6030, 6130 to 300 psig Steam 422 ºF
Pressure Limits Steam Pressure Limit At 406 F
250 psig
Specifications Applications
Acid | Air and Gas Compressors - Reciprocating or Rotary-Portable or Stationary, Intercoolers and After Coolers | Air Gas | Ammonia and Other Corrosive Liquids | Caustic | Cryogenics | Hydraulic System Relief | Including Tanks, Receivers, Sterilizers and Autoclaves | Liquids | Pressure Vessels - Containing Steam, Air or Non-Hazardous Gas | Steam Boilers and Generators
Specifications Asme Certification
ASME applies to valves 15 psi and up. These are standard hard seat valves.
Specifications Construction Material
Brass | Bronze | Iron | Stainless Steel | Steel
Specifications Flow Rate At 125 Psi Rating
1357 ft³/min
Specifications Inlet Pipe Size
1-1/2 in
Specifications Other Kunkle Valves Available For Special Applica

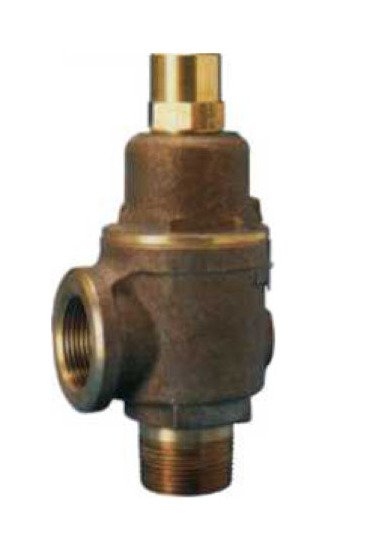

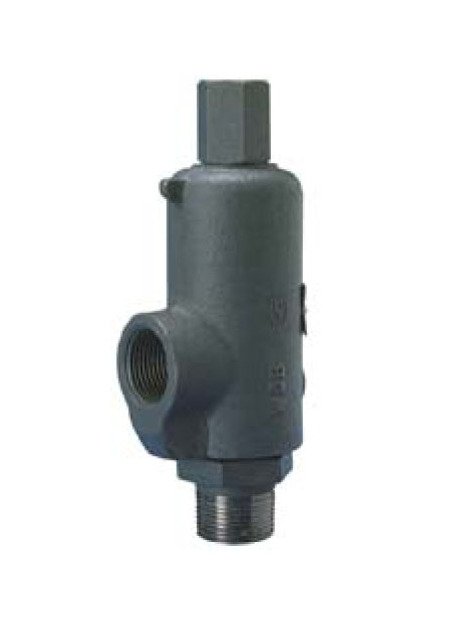

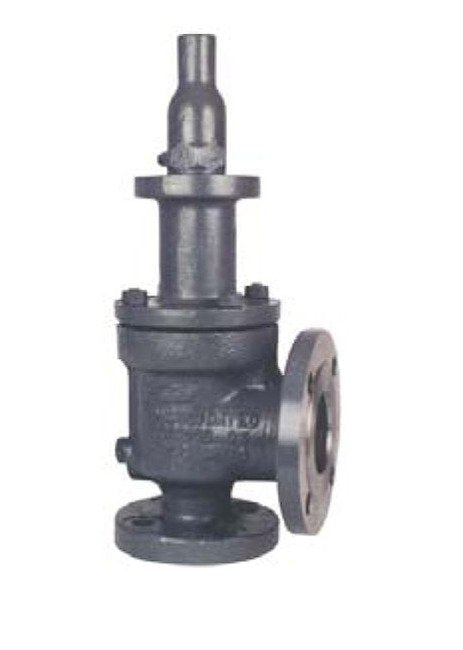

Bronze Liquid Relief Valve | Process/Safety - Relief Valve - Flanged | Process/Safety - Relief Valve - Screwed
Specifications Outlet Pipe Size
2 in
Specifications Pressure Range
5 to 6500 psi
Specifications Stock Pressure Set
125 psi | 140 psi | 150 psi | 165 psi | 175 psi | 200 psi
