Kyson 613-2 2kW Fiber Laser Cutter
Kyson 613-2 2kW Fiber Laser Cutter
SKU:KYS-2e7ce3
Kyson 613-2 2kW Fiber Laser Cutter - Precision cutting with efficiency and sustainability. Dual tables for maximum productivity.
Regular price
$68,999.00
Regular price
Sale price
$68,999.00
Unit price
per
Initiate Order
Kyson 613-2 2kW Fiber Laser Cutter
$68,999.00
Quantity: 1
Claim Your Seller Account
Kyson 613-2 2kW Fiber Laser Cutter
$68,999.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Kyson 613-2 2 Kilowatt Fiber Laser Cutter from RMT is a cutting-edge solution designed for precision cutting across various materials. Powered by a 2kW laser light source, this machine offers exceptional cutting speeds with minimal energy consumption. Its CNC controller, high-speed servo motor system, and advanced cutting head ensure consistent and efficient performance. With dual interchangeable tables, this laser cutter maximizes productivity, while the fiber beam transmission system guarantees minimal power loss and extended operational lifespan. Experience higher cutting flexibility and accuracy with the Kyson 613-2, making it a cost-effective and environmentally friendly choice for your organization's cutting needs.
Product Specifications
Assist Gas Assist Gas Aluminum Dry Air Or Nitrogen
7.25 to 362 psi | 0.5 to 25 bar
Assist Gas Assist Gas Mild Steel Oxygen
7.25 to 87 psi | 0.5 to 6 bar
Assist Gas Assist Gas Stainless Steel Nitrogen
7.25 to 362 psi | 0.5 to 25 bar
Axis X U Axis
13 ft 3 in. | 4050 mm
Axis Y Axis
6 ft 8 in. | 2050 mm
Axis Z Axis
5.9 in | 150 mm
Benefits
Manufactured by people who use their own machinesLaser beam transmitted through a fiber optic cable rather than with mirrors and channel tubing resulting in negligible power loss.The laser light source has a life expectancy of more than three times that of an equivalent CO2 laser.Higher cutting speeds possibleDual interchangeable tables allow for faster loading and unloading, reducing downtimeLaser wavelength is one-tenth of a CO2 laserReduction in cutting variables or tribal knowledgeFiber Laser is extremely efficient, equates to very low power consumptionLow cost of operation, reduced energy cost, no laser gases required to produce beamHigh cutting flexibility (Steel, Stainless Steel, Brass, Copper, Titanium, Aluminum, and more)Very few consumables
Conservative Production Cutting Capacity Conservative Production
0.187 in

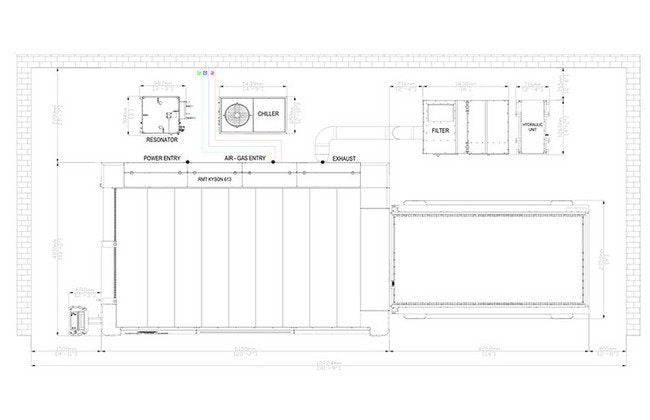

Machine Dimensions Machine Height
85 in | 2155 mm
Machine Dimensions Machine Length
438 in | 11115 mm
Machine Dimensions Machine Width
159 in | 4030 mm
Main Features
Laser Light Source and chillerRMT has partnered with industry leaders for the highest quality laser light sources on the market. Ytterbium fiber lasers operating at the 1070 nm wavelength are perfect for laser cutting. The operating wavelength, multi-kilowatt power, good beam quality, wide operating power range, power stability and small spot size on our laser are perfect for most cutting applications. Fiber lasers have a wide dynamic operating power range and the beam’s focus and position remain constant, even when the laser power is changed, allowing consistent processing results every time. A wide range of spot sizes can be achieved by changing the optics configuration. These features enable the end user to choose an appropriate power density for cutting various materials and wall thicknesses.The laser light source chiller is a closed-loop liquid cooling system. The temperature of the light source is constantly monitored by the chiller, ensuring the light source is running at optimal temperatures. The standard cooling system will protect the laser in an environment up to +190 ºF.
Note
Due to ongoing product development, RMT reserves the right to modify any technical specifications and dimensionsAlternate Optic Configurations: Cutting Capacity may vary depending on optic system settings. Working capacities may be higher or lower depending on the configuration.
Optional Features
Linear DriveDust Collection UnitAdditional Operator GlassesLens with 7.874" Focus LengthSheet loading & unloading systemsAutomation & Storage systemsAutomatic Nozzle ChangerCustom table sizesUp to 6 kW laser light sourcesLight safety barrierAir conditioner for electrical panelMetalix, Almacam etc. CAD/CAM softwareLCM (laser cut monitor) sensor for pierce detection and cut loss control
Rack And Pinion Linear Positioning System Linear Acceleration
3 G
Rack And Pinion Linear Positioning System Linear Additional Powe
+ 20 kW·h
Rack And Pinion Linear Positioning System Linear Axis Speed X Y
7,874 L/min | 200 m/min
Rack And Pinion Linear Positioning System Linear Positioning Acc
0.0004 in | 0.01 mm
Rack And Pinion Linear Positioning System Linear Repeatability
0.0004 in | 0.01 mm
Rack And Pinion Linear Positioning System Positioning System
Linear | Rack and Pinion
Rack And Pinion Linear Positioning System Rack And Pinion Accele
1.5 G
Rack And Pinion Linear Positioning System Rack And Pinion Axis S
5,551 L/min | 141 m/min
Rack And Pinion Linear Positioning System Rack And Pinion Positi
0.0012 in | 0.03 mm
Rack And Pinion Linear Positioning System Rack And Pinion Repeat
0.0006 in | 0.015 mm
Specifications Average Power Consumption
21 kW
Specifications Laser Fiber Diameter
0.004 in | 100 µm
Specifications Maximum Load Capacity
5,511 lb | 2,500 kg
Specifications Note For Conservative Production Cutting Capacity
Conservative cutting capacities may vary depending on optic system settings. Working capacities may be higher or lower depending on the configuration.
Specifications Note For Laser Fiber Diameter
Different diameter fiber cables are available.
Specifications Power Stability Power Monitor
1 to 2 %
Specifications Pulse Peak Power
2 kW
Specifications Sheet Dimensions
6 ft 6 in. x 13 ft 1 in. | 2000 x 4000 mm
Specifications Size
6 ft 6 in. x 13 ft 1 in.
Specifications Voltage
220 V | 460 V
