Kyson Lasers Full Automatic Sheet Loading System - 10 Pallets Multi Server 510
Kyson Lasers Full Automatic Sheet Loading System - 10 Pallets Multi Server 510
Enhance productivity with Kyson Lasers Full Automatic Sheet Loading System - precise, efficient, and reliable for industrial applications.
Regular price
$43,999.00
Regular price
Sale price
$43,999.00
Unit price
per
Initiate Order
Kyson Lasers Full Automatic Sheet Loading System - 10 Pallets Multi Server 510
$43,999.00
Quantity: 1
Claim Your Seller Account
Kyson Lasers Full Automatic Sheet Loading System - 10 Pallets Multi Server 510
$43,999.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

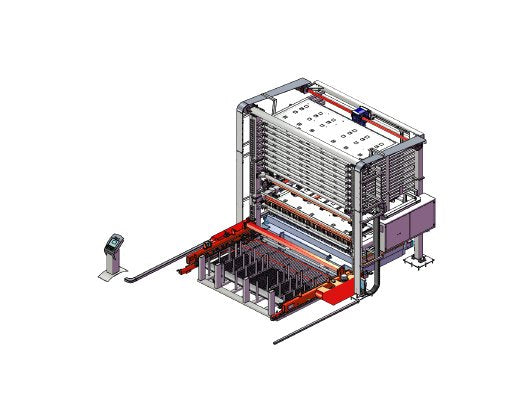

Experience unparalleled efficiency with the Kyson Lasers Full Automatic Sheet Loading System - 10 Pallets Multi Server 510. This system ensures precise sheet separation using advanced technologies like a magnet and suction cups. With thickness measuring control and Z axis fall safety features, it guarantees reliable unmanned operations. The system also offers a Siemens controller, touch screen interface, and customizable pallet options, making it ideal for industrial applications requiring high precision and productivity.
Product Specifications
Additional Information
Fixed fencing system and photocell protectionMagnetic Stripper: Supports the suction cups handler when separating metal sheetsAir Jet Blower: Separates the metal sheet to prevent them from adhering togetherSheets Pneumatic Stripper: Moves independently up and down to separate the metal sheetsSiemens brand controller supports up to 28 material codes in the systemOpen system for the robot configuration5-7 inch touch screen with keypad (system can be run with touch screen or keypad)Minimum of three pallets for the stock area and can be customized up to 15 pallets with each load holding 6610 pounds.
Specifications Electric Power Installed
24 hp
Specifications Electric Power Installed Tolerance
10 %
Specifications Electric Voltage
460 V
Specifications Frequency
60 Hz
Specifications Maximum Current Absorption
27 A
Specifications Maximum Current Absorption Tolerance
10 %

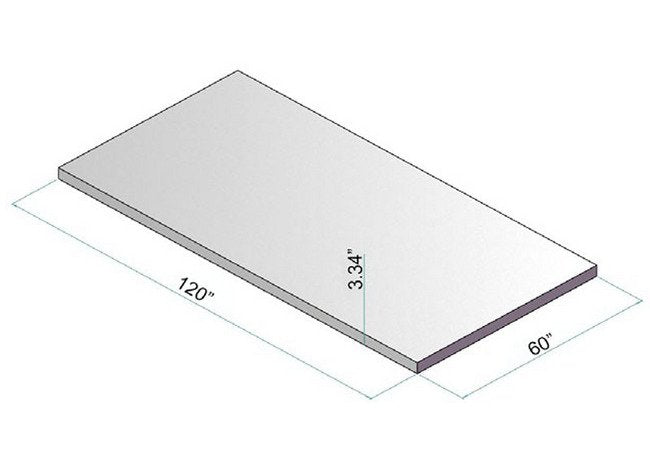

Specifications Maximum Dimension
120 x 60 x 0.75 in
Specifications Maximum Height Stack Of Sheet
3.34 in
Specifications Maximum Weight Stack
6613 lb
Specifications Minimum Dimension
40 x 40 x 0.020 in
Specifications Number Of Pallets
10
Specifications Overall Dimensions
259 × 232 in
Specifications Overall Height H
226 in
Specifications Phase
3
Specifications Short Circuit Current
10 kA
Specifications Short Circuit Current Tolerance
10 %
Specifications Total System Weight
22,939 lb
