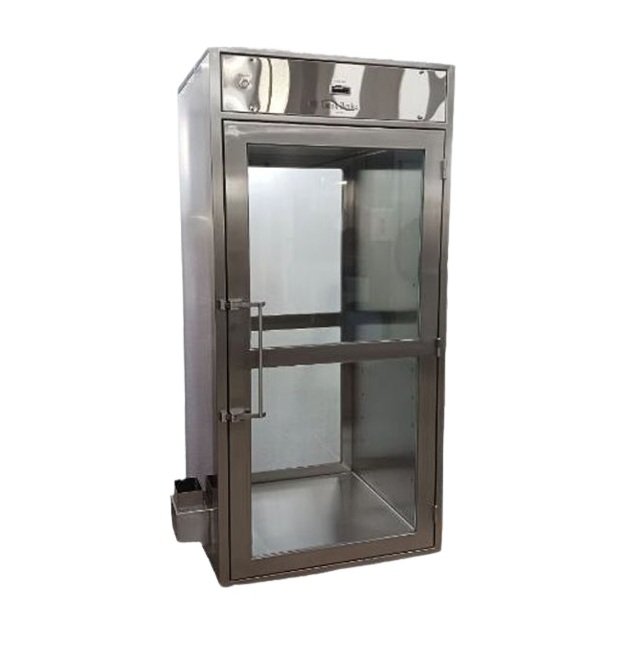

Laminar Flow Inc. 72x60x60 Pass Through Door
Laminar Flow Inc. 72x60x60 Pass Through Door
SKU:FLU-eb81b6
Enhanced Laminar Flow Inc. Pass Through Door for seamless interroom transfer with precision control.
Regular price
$3,099.99
Regular price
Sale price
$3,099.99
Unit price
per
Initiate Order
Laminar Flow Inc. 72x60x60 Pass Through Door
$3,099.99
Quantity: 1
Claim Your Seller Account
Laminar Flow Inc. 72x60x60 Pass Through Door
$3,099.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Laminar Flow Inc. 72x60x60 Pass Through Door is a meticulously engineered solution designed for both consumer and institutional needs. Constructed with heavy-duty stainless steel, the Pass Through ensures long-term maintenance-free operation. Features include electronic or mechanical interlocks, double-wall construction, HEPA filtration options, and customizable controls like LED lighting and automatic door operation. With compliance to federal procurement standards and industry certifications, this Pass Through meets the most stringent requirements for product and ambient area protection.
Product Specifications
Construction Construction
A completely self-contained system constructed of double wall, heavy duty 14 and 16 ga stainless steel. Continuously welded interiors ground smooth and polished provide a seamless 1/2" rad. coved corner interior as standard method of construction. Heavy duty stainless steel latches assure a positive door sea!. Doors are manufactured from either heavy gauge double wall or tubular construction. Doors are available with Lexan, Plexiglas, or Laminated Safety Glass viewing panels. HEPA filtered Pass Thrus active feature a continuously welded knife edge incorporated into the top of the Pass Thru flush mounted with a perforated stainless steel grille located downstream of the HEPA filter. Grilles are removable and accessible from within the Pass Thru. Systems are fully assembled and wired at our facility prior to shipping.
Controls And Features Controls And Features

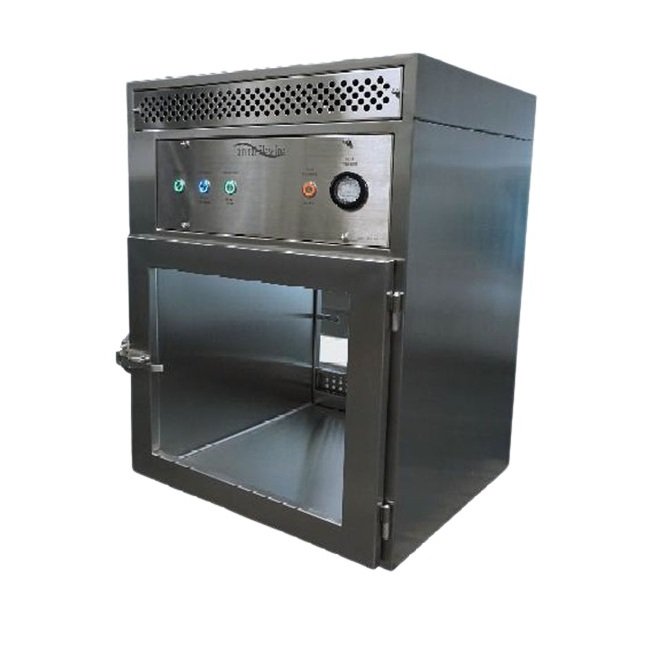

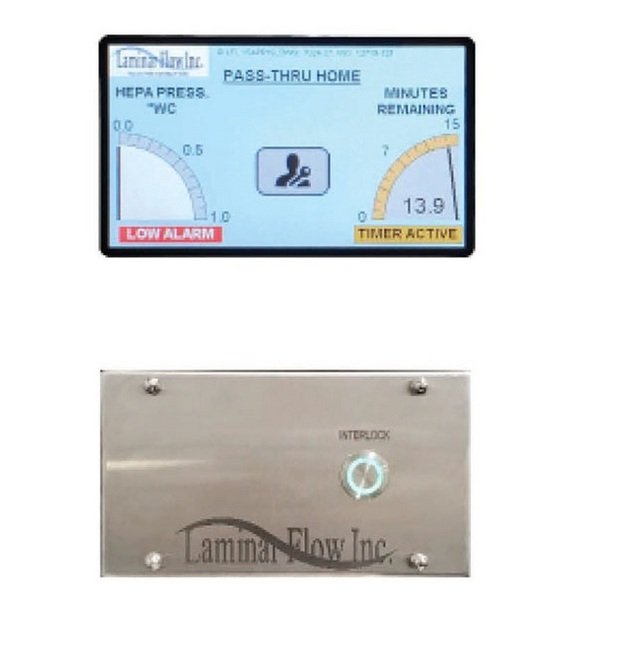

Pass-Thru Controls and Features All Pass-Thrus can be equipped with an assortment of optional features:Electromagnetic interlocks integrated into the Pass Thru body with Red/Green LED indicator lights.Automatic doors with Wave Switch operation.Interior LED lightingColor Touchscreen PLC/HMI for Pass Thru control and diagnostic Options for Pass Thrus with HEPA filtrationForced air blower with speed controlFilter Pressure monitoring gaugeVisual and/or audible alerts for Low and High PressureDigital Purge timer with additional Red/Green indicator lightsBAS Feedback for remote monitoringOther features are available on request, discuss any custom requirements with the LFI sales team, they will be happy to meet your unique needs.
Filters Filters
If specified, HEPA or ULPA filters are available. Gel Seal technology is utilized as a standard with all of our systems. This design allows for the gel trough to be around the filter and the knife edge integrally incorporated into the Pass Thru. Perforated stainless steel grilles located downstream and flush to the interior protect the filter and provide even air distribution. Both serviced from within the Pass Thru chamber.

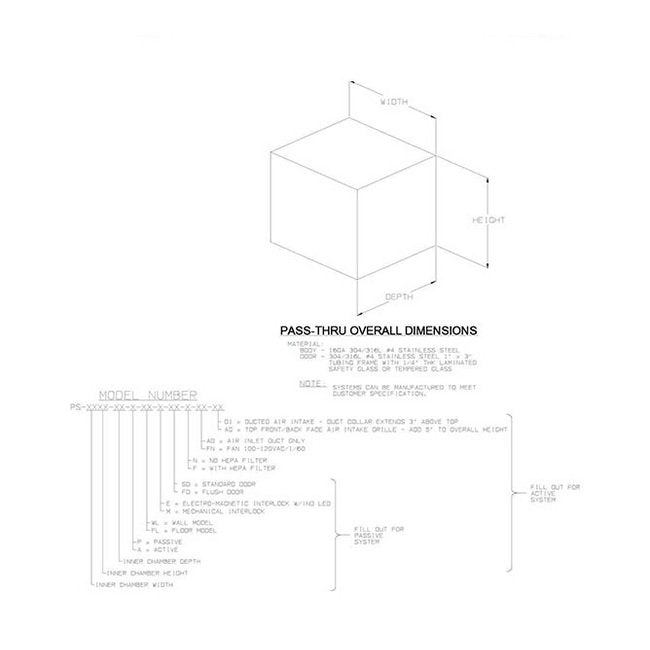

Floor Model Overall Dimensions Active Depth For Floor Model
62-1/2 in
Floor Model Overall Dimensions Active Height For Floor Model
71 in
Floor Model Overall Dimensions Active Width For Floor Model
79-1/2 in
Floor Model Overall Dimensions Note For Active Floor Model Overa
Dimensions are mechanical and electro-magnetic interlocks.
Floor Model Overall Dimensions Note For Passive Floor Model Over
Height dimensions for mechanical interlock add no integral floor. Add 8-1/2"for electro-magnetic interlock and 2-1/2 for integral floor.
Floor Model Overall Dimensions Passive Depth For Floor Model
62-1/2 in
Floor Model Overall Dimensions Passive Height For Floor Model
62-1/2 in
Floor Model Overall Dimensions Passive Width For Floor Model
79-1/2 in
Internal Sizes Depth
60 in
Internal Sizes Height
60 in
Internal Sizes Width
72 in
Note Note
Laminar Flow Inc. Pass Thrus are designed to protect product and ambient areas while passing through adjacent rooms with different classifications.Please note standard sizes shown. For custom sizes please contact a LFI sales representative.All systems constructed of 304 or 316L stainless steel polished to a number 4 finish.All industry standard electrical voltages and electrical configurations are available.If applicable, electrical connections, filters & lights may need to be installed in the field by others.Installation, electrical tie-in in field by others.
Options Options

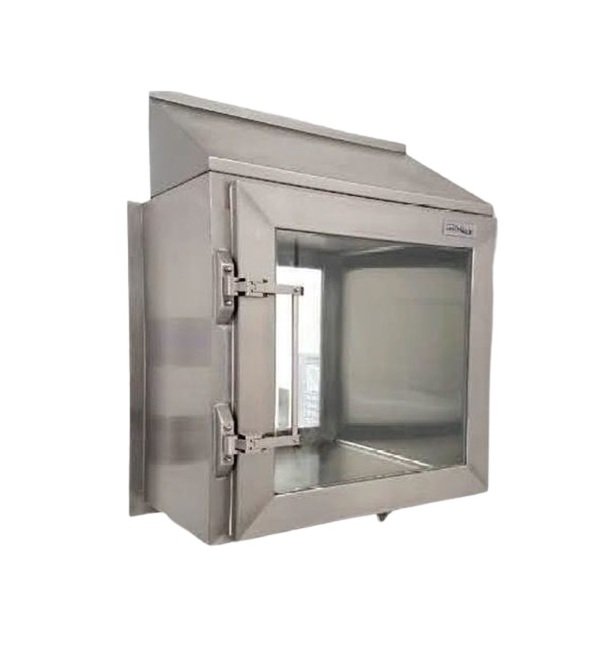

Mechanical InterlockElectro-magnetic InterlockPLC controlsLED lightingAutomated door with wave technologyHEPA or ULPA filterSingle pass air flow with air ductSloped topSingle pass air flow with blowerRecirculating air flow with blowerRemovable shelfWall mountedFloor mountedVHP ports
Technical Specs Brands
Laminar Flow Inc.
Technical Specs Note For Internal Sizes
Unless noted otherwise, all dimensions are external.
