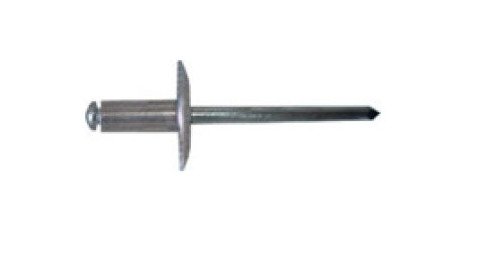

Large Blind Rivet, 4.8mm x 8.0mm, Aluminum Alloy, Pack of 3000

Name: Large Blind Rivet, 4.8mm x 8.0mm, Aluminum Alloy, Pack of 3000
Brand: Ornit USA
SKU: OPE-860292
Price: 129.99 USD
Availability: OutOfStock

SKU:OPE-860292

Enhance projects with Large Blind Rivet, 4.8mm x 8.0mm, Aluminum Alloy, Pack of 3000. Superior strength & corrosion resistance.

$129.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Upgrade your riveting projects with the Large Blind Rivet measuring 4.8mm in diameter and 8.0mm in body length. Crafted from durable Aluminum Alloy (AA 5052) with a Zinc Plated Chromium VI Free finish, this rivet offers superior strength and corrosion resistance. With a nominal shear force of 150 kgf and tensile force of 220 kgf, it ensures secure fastening in a wide range of applications. Ideal for aerospace, automotive, and construction projects, this pack of 3000 rivets guarantees top-quality performance and reliability.

Product Specifications

Nominal Dimensions Body Length

8.0 mm | 0.315 in

Nominal Dimensions Diameter

4.8 mm

Nominal Dimensions Drillhole Size

4.9 mm | 0.193 in

Nominal Dimensions Head Diameter

14 mm | 0.551 in

Nominal Dimensions Head Thickness

1.70 mm | 0.067 in

Nominal Dimensions Mandrel Diameter

2.61 mm | 0.103 in

Nominal Dimensions Maximum Grip Range

3.0 mm | 0.118 in

Nominal Dimensions Minimum Grip Range

1.0 mm | 0.039 in

Nominal Forces Nominal Shear Force

150 kgf | 330 lbf

Nominal Forces Nominal Tensile Force

220 kgf | 484 lbf

Technical Specs Body Finish

Natural

Technical Specs Body Material

Aluminum Alloy (2.5 mg) to AA 5052

Technical Specs Brands

Ornit

Technical Specs Carton Quantity

3000

Technical Specs Head Style

Large

Technical Specs Mandrel Finish

Zinc Plated Chromium (Cr) VI Free

Technical Specs Mandrel Material

Low Carbon Steel SAE 1006-1022

Large Blind Rivet, 4.8mm x 8.0mm, Aluminum Alloy, Pack of 3000
