Large Compression Latch - 66.3 to 76.4mm H Grip Range, Offset Cam, 10mm Hex Male Cylinder
Large Compression Latch - 66.3 to 76.4mm H Grip Range, Offset Cam, 10mm Hex Male Cylinder
SKU:IND-da1f40
Secure doors & flaps easily with our Offset Cam Large Compression Latch - robust build, versatile usage, & IP65/NEMA 4 compliant
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Large Compression Latch - 66.3 to 76.4mm H Grip Range, Offset Cam, 10mm Hex Male Cylinder
$29.99
Quantity: 1
Claim Your Seller Account
Large Compression Latch - 66.3 to 76.4mm H Grip Range, Offset Cam, 10mm Hex Male Cylinder
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

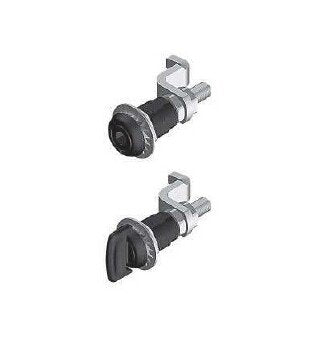

Enhance security with our Large Compression Latch featuring an offset cam for compressive latching. With a 10mm hex male cylinder and a H grip range of 66.3 to 76.4mm, this latch combines durability and functionality. Constructed with mild steel cam, die-cast zinc housing, and cylinder, providing robust strength. The cam is zinc plated while the housing and cylinder are black powder coated, ensuring corrosion resistance. Specialized as left or right-handed with compliance to IP65 and NEMA 4 standards for exceptional ingress protection.

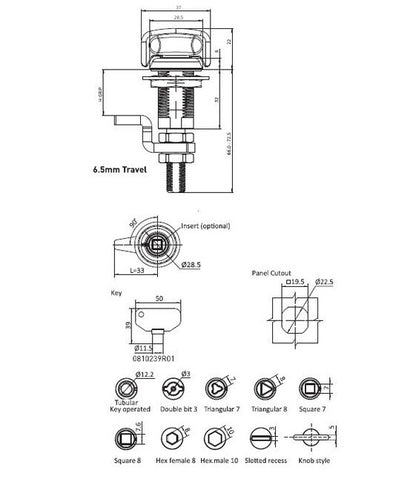

Product Specifications
Specifications Cam Style
Offset
Specifications Cylinder Size
10 mm
Specifications Cylinder Type
Hex Male
Specifications H Grip Range
66.3 to 76.4 mm
Specifications Industry Standards
Ingress Protection (IP65) | National Electrical Manufacturers Association (NEMA 4)
Specifications Material
Cam: Mild Steel | Housing and Cylinder: Die-Cast Zinc
Specifications Special Features
Left | Right
Specifications Surface Finish
Cam: Zinc Plated | Housing and Cylinder: Black Powder Coated
