Large Compression Latch - Double Bit Cylinder, H Grip Range 11.4-27.2mm

Name: Large Compression Latch - Double Bit Cylinder, H Grip Range 11.4-27.2mm
Brand: All Electronics Hardware
SKU: IND-35e4ec
Price: 29.99 USD
Availability: OutOfStock

SKU:IND-35e4ec

Secure doors and flaps confidently with the Large Compression Latch's reserved Cam & 3mm Double Bit Cylinder. Meets IP65 & NEMA 4 standards.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

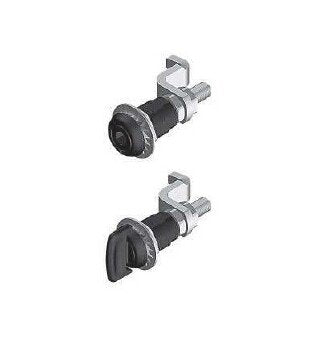

Enhance security and compression with the Large Compression Latch featuring a reserved Cam, 3mm Double Bit Cylinder. Crafted with mild steel Cam, die-cast zinc Housing, and Cylinder, offering durability. Designed for left or right application, with a surface finish of Zinc Plated Cam and Black Powder Coated Housing and Cylinder. Meets industry standards including IP65 and NEMA 4 for optimal performance and protection.

Product Specifications

Specifications Cam Style

Reserved

Specifications Cylinder Size

3 mm

Specifications Cylinder Type

Double Bit

Specifications H Grip Range

11.4 to 27.2 mm

Specifications Industry Standards

Ingress Protection (IP65) | National Electrical Manufacturers Association (NEMA 4)

Specifications Material

Cam: Mild Steel | Housing and Cylinder: Die-Cast Zinc

Specifications Special Features

Left | Right

Specifications Surface Finish

Cam: Zinc Plated | Housing and Cylinder: Black Powder Coated

Large Compression Latch - Double Bit Cylinder, H Grip Range 11.4-27.2mm
