Large Compression Latch - Offset Cam, 8mm Square Cylinder, 52.6-68.3mm H Grip Range

Name: Large Compression Latch - Offset Cam, 8mm Square Cylinder, 52.6-68.3mm H Grip Range
Brand: All Electronics Hardware
SKU: IND-2f09ac
Price: 29.99 USD
Availability: OutOfStock

SKU:IND-2f09ac

Secure doors & flaps with ease using this Offset Cam Large Compression Latch. 52.6-68.3mm H Grip, 8mm Square Cylinder, IP65 & NEMA 4 compliant.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

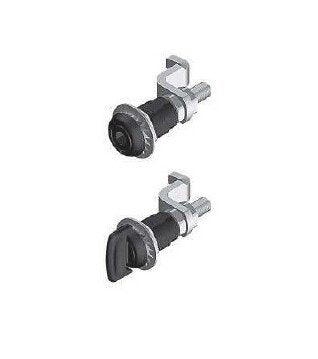

Enhance security with this Large Compression Latch featuring an Offset Cam design, 8mm Square Cylinder, and a wide 52.6-68.3mm H Grip Range. Crafted with durable materials, the cam is mild steel, while the housing and cylinder are die-cast zinc with zinc plating and black powder coat finishes. Special left and right features offer versatility, complying with IP65 and NEMA 4 standards for protection against environmental factors. Ideal for industrial applications requiring reliable, compressive latching and locking.

Product Specifications

Specifications Cam Style

Offset

Specifications Cylinder Size

8 mm

Specifications Cylinder Type

Square

Specifications H Grip Range

52.6 to 68.3 mm

Specifications Industry Standards

Ingress Protection (IP65) | National Electrical Manufacturers Association (NEMA 4)

Specifications Material

Cam: Mild Steel | Housing and Cylinder: Die-Cast Zinc

Specifications Special Features

Left | Right

Specifications Surface Finish

Cam: Zinc Plated | Housing and Cylinder: Black Powder Coated

Large Compression Latch - Offset Cam, 8mm Square Cylinder, 52.6-68.3mm H Grip Range
