Large Compression Latch - Square Cylinder, H Grip Range 25.4-41.1mm
Large Compression Latch - Square Cylinder, H Grip Range 25.4-41.1mm
SKU:IND-a269d2
Secure large compression latch with reserved cam square cylinder design for doors/flaps, IP65 & NEMA 4 compliant.
Regular price
$34.99
Regular price
Sale price
$34.99
Unit price
per
Initiate Order
Large Compression Latch - Square Cylinder, H Grip Range 25.4-41.1mm
$34.99
Quantity: 1
Claim Your Seller Account
Large Compression Latch - Square Cylinder, H Grip Range 25.4-41.1mm
$34.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

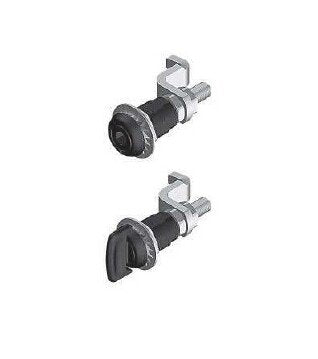

The Large Compression Latch features a reserved cam square cylinder design with a 7mm size, providing easy, secure compression for doors and flaps. Crafted from durable materials including mild steel cam and die-cast zinc housing, it ensures robust performance. This latch is surface-finished with zinc plating for the cam and black powder coating for the housing and cylinder. With special features for both left and right applications, it complies with Ingress Protection (IP65) and NEMA 4 standards, ideal for industrial settings.

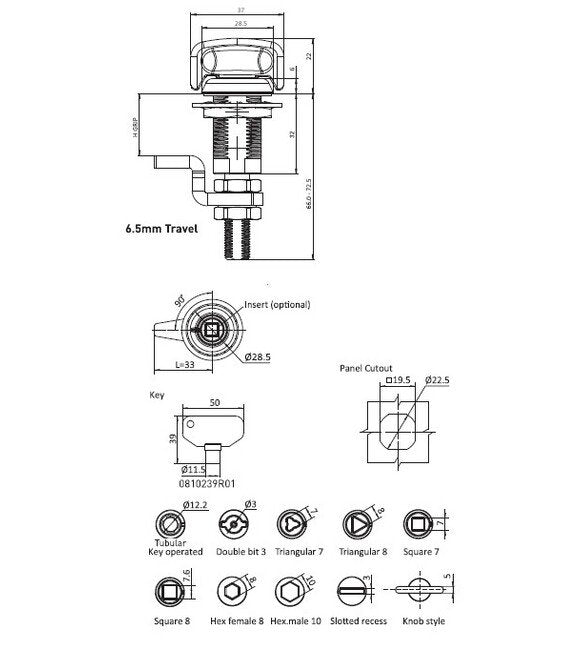

Product Specifications
Specifications Cam Style
Reserved
Specifications Cylinder Size
7 mm
Specifications Cylinder Type
Square
Specifications H Grip Range
25.4 to 41.1 mm
Specifications Industry Standards
Ingress Protection (IP65) | National Electrical Manufacturers Association (NEMA 4)
Specifications Material
Cam: Mild Steel | Housing and Cylinder: Die-Cast Zinc
Specifications Special Features
Left | Right
Specifications Surface Finish
Cam: Zinc Plated | Housing and Cylinder: Black Powder Coated
