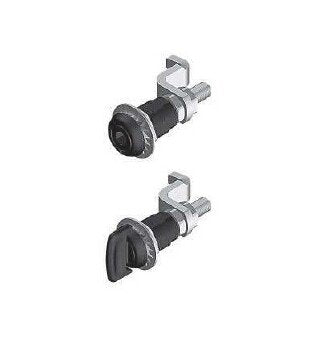

Large Compression Latch with 10mm Hex Male Cylinder & Offset Cam, 52.6-68.5mm H Grip Range
Large Compression Latch with 10mm Hex Male Cylinder & Offset Cam, 52.6-68.5mm H Grip Range
SKU:IND-ec684e
Secure latching with 10mm Hex Cylinder, Offset Cam & 52.6-68.5mm H Grip. Compliant with IP65 & NEMA 4.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Large Compression Latch with 10mm Hex Male Cylinder & Offset Cam, 52.6-68.5mm H Grip Range
$29.99
Quantity: 1
Claim Your Seller Account
Large Compression Latch with 10mm Hex Male Cylinder & Offset Cam, 52.6-68.5mm H Grip Range
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Ensure easy, secure, and compressive latching with the Large Compression Latch featuring a 10mm Hex Male Cylinder, Offset Cam, and a 52.6-68.5mm H Grip Range. Built with high-quality materials including Mild Steel Cam, Die-Cast Zinc Housing, and Cylinder with Zinc Plated and Black Powder Coated finish. Dual handling with Left/Right options. Compliant with IP65 Ingress Protection and NEMA 4 standards for reliable performance in industrial applications.
Product Specifications
Specifications Cam Style
Offset
Specifications Cylinder Size
10 mm
Specifications Cylinder Type
Hex Male
Specifications H Grip Range
52.6 to 68.5 mm
Specifications Industry Standards
Ingress Protection (IP65) | National Electrical Manufacturers Association (NEMA 4)
Specifications Material
Cam: Mild Steel | Housing and Cylinder: Die-Cast Zinc
Specifications Special Features
Left | Right
Specifications Surface Finish
Cam: Zinc Plated | Housing and Cylinder: Black Powder Coated
