Large Compression Latch with 3mm Double Bit Cylinder

Name: Large Compression Latch with 3mm Double Bit Cylinder
Brand: All Electronics Hardware
SKU: IND-193959
Price: 29.99 USD
Availability: OutOfStock

SKU:IND-193959

Secure large compression latch with versatile 3mm double bit cylinder. Straight cam design, zinc plated, and IP65/NEMA 4 compliant.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

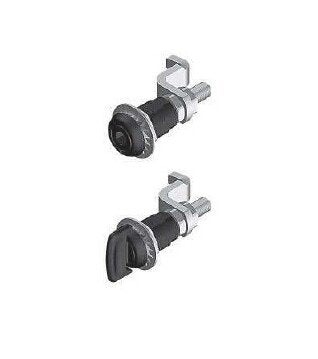

The Large Compression Latch with a 3mm Double Bit Cylinder is designed for easy and secure latching and locking of industrial doors and flaps. With a H Grip Range of 38.9 to 54.6mm, this latch offers versatile fitting options. Its cam style is straight, and the housing and cylinder are made from high-quality materials: cam - mild steel, housing, and cylinder - die-cast zinc. The surface finish includes zinc plating for the cam and black powder coating for the housing and cylinder. Additionally, this latch features special left and right side options, meeting industry standards such as Ingress Protection (IP65) and NEMA 4.

Product Specifications

Specifications Cam Style

Straight

Specifications Cylinder Size

3 mm

Specifications Cylinder Type

Double Bit

Specifications H Grip Range

38.9 to 54.6 mm

Specifications Industry Standards

Ingress Protection (IP65) | National Electrical Manufacturers Association (NEMA 4)

Specifications Material

Cam: Mild Steel | Housing and Cylinder: Die-Cast Zinc

Specifications Special Features

Left | Right

Specifications Surface Finish

Cam: Zinc Plated | Housing and Cylinder: Black Powder Coated

Large Compression Latch with 3mm Double Bit Cylinder
