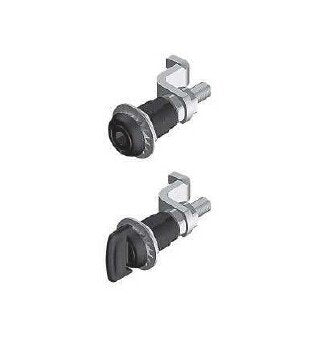

Large Compression Latch with 52.6-68.3mm H Grip Range, Offset Cam, Slotted Recess Cylinder

Name: Large Compression Latch with 52.6-68.3mm H Grip Range, Offset Cam, Slotted Recess Cylinder
Brand: All Electronics Hardware
SKU: IND-2ec513
Price: 29.99 USD
Availability: OutOfStock

SKU:IND-2ec513

Secure doors and flaps with ease using this Large Compression Latch. Adjustable grip range, durable materials, and IP65/NEMA 4 compliance.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Large Compression Latch from All Electronics Hardware ensures easy, secure locking with its offset cam style and slotted recess cylinder. With an adjustable H grip range of 52.6-68.3mm, this latch offers versatile use on doors and flaps. Crafted from mild steel cam and die-cast zinc housing and cylinder with zinc plating and black powder coating, it provides durability and corrosion resistance. Featuring left and right configurations, this latch meets Ingress Protection (IP65) and NEMA 4 standards for reliable performance in industrial settings.

Product Specifications

Specifications Cam Style

Offset

Specifications Cylinder Type

Slotted Recess

Specifications H Grip Range

52.6 to 68.3 mm

Specifications Industry Standards

Ingress Protection (IP65) | National Electrical Manufacturers Association (NEMA 4)

Specifications Material

Cam: Mild Steel | Housing and Cylinder: Die-Cast Zinc

Specifications Special Features

Left | Right

Specifications Surface Finish

Cam: Zinc Plated | Housing and Cylinder: Black Powder Coated

Large Compression Latch with 52.6-68.3mm H Grip Range, Offset Cam, Slotted Recess Cylinder
