Large Loop-Type Demagnetizer for Industrial Use
Large Loop-Type Demagnetizer for Industrial Use
SKU:LAR-b3d712
Efficiently demagnetize industrial workpieces with precision. NEMA 12 enclosure for safety. Ideal for large-scale demagnetization processes.
Regular price
$2,599.99
Regular price
Sale price
$2,599.99
Unit price
per
Initiate Order
Large Loop-Type Demagnetizer for Industrial Use
$2,599.99
Quantity: 1
Claim Your Seller Account
Large Loop-Type Demagnetizer for Industrial Use
$2,599.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

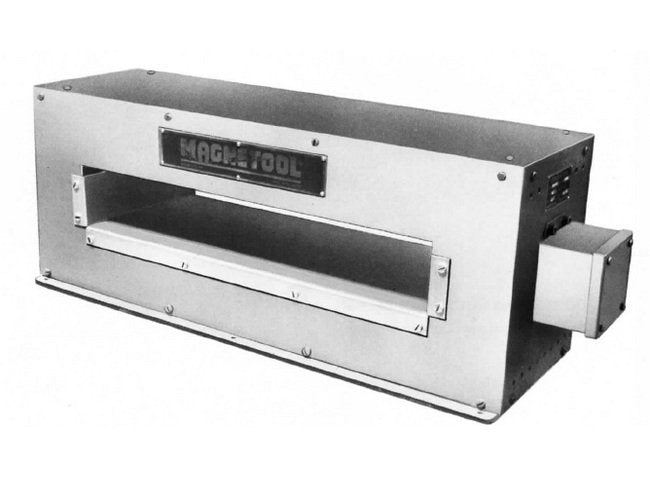

The Large Loop-Type Demagnetizer is designed for industrial applications, ensuring workpieces pass through effectively for optimal demagnetization. With an opening height of 12 inches and width of 24 inches, it accommodates various sizes. This demagnetizer is built with a NEMA 12 enclosure, complying with industry standards to prevent excessive heat induction in magnetic steel. It features a durable construction of Magnetic Steel and Non-Magnetic Stainless Steel, Aluminum, Brass for efficient demagnetization without compromising quality.
Product Specifications
Additional Information 0
Another method is to place a Surface Type Demagnetizer under the belt and if necessary, another unit suspended over the belt so the work passes between the two Demagnetizers. These Demagnetizers should be placed on a non-metallic surface to reduce the heating caused by induction.A fused disconnect switch should be inserted in the AC supply line for protection. Special demagnetizer controls can be furnished with a NEMA 12 enclosure, push buttons, pilot lamp, ammeter, voltmeter, foot pedal, and automatic timers. An alternative is to have only the belt pass through the demagnetizer.
Manufacturing Notes 0
CAUTION: Demagnetizers should not be used near sensitive electronic equipment. Special standards are available.
Specifications Current For Single Phase Voltage 230 Vac
60 A
Specifications Current For Single Phase Voltage 460 Vac
30 A
Specifications Duty Percentage
25 %
Specifications Duty Type
Intermittent
Specifications Material
Magnetic Steel | Non-Magnetic Stainless Steel, Aluminum, Brass.
Specifications Net Weight
350 lb
Specifications Opening Height
12 in
Specifications Opening Width
24 in
Specifications Overall Depth
12 in
Specifications Overall Height
25 in
Specifications Overall Width
36 in
Specifications Standards
NEMA 12 Enclosure
