Large Loop-Type Demagnetizer - Powerful Magnet Field for Fast Demagnetization
Large Loop-Type Demagnetizer - Powerful Magnet Field for Fast Demagnetization
SKU:LAR-9a5245
Efficiently demagnetize workpieces with the Large Loop-Type Demagnetizer. NEMA 12 enclosure, high duty cycle, and strong magnetic field for fast operation.
Regular price
$1,899.99
Regular price
Sale price
$1,899.99
Unit price
per
Initiate Order
Large Loop-Type Demagnetizer - Powerful Magnet Field for Fast Demagnetization
$1,899.99
Quantity: 1
Claim Your Seller Account
Large Loop-Type Demagnetizer - Powerful Magnet Field for Fast Demagnetization
$1,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

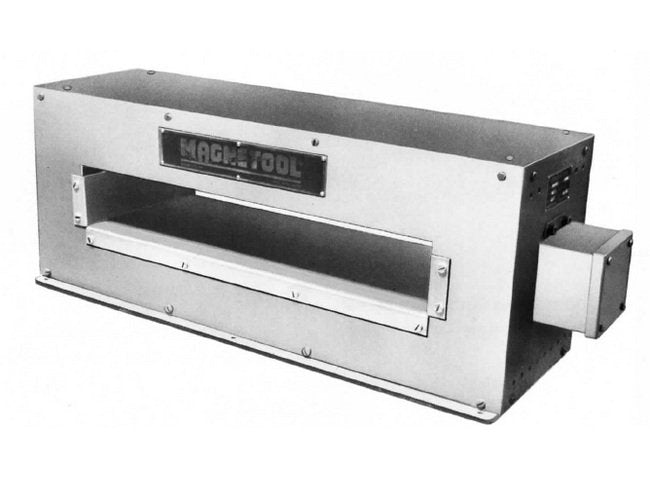

The Large Loop-Type Demagnetizer features a 6x12-inch opening with a strong magnetic field for efficient demagnetization. With a NEMA 12 enclosure, this demagnetizer ensures continuous operation at 100% duty cycle. Constructed with high-quality Magnetic Steel and non-magnetic materials like Stainless Steel, Aluminum, and Brass, it prevents induction heating in magnetic steel workpieces. Additional controls such as push buttons, foot pedal, and automatic timers enhance user experience and safety. Keep sensitive electronic equipment away from this demagnetizer to prevent interference.
Product Specifications
Additional Information 0
Another method is to place a Surface Type Demagnetizer under the belt and if necessary, another unit suspended over the belt so the work passes between the two Demagnetizers. These Demagnetizers should be placed on a non-metallic surface to reduce the heating caused by induction.A fused disconnect switch should be inserted in the AC supply line for protection. Special demagnetizer controls can be furnished with a NEMA 12 enclosure, push buttons, pilot lamp, ammeter, voltmeter, foot pedal, and automatic timers. An alternative is to have only the belt pass through the demagnetizer.
Manufacturing Notes 0
CAUTION: Demagnetizers should not be used near sensitive electronic equipment. Special standards are available.
Specifications Current For Single Phase Voltage 230 Vac
28 A
Specifications Current For Single Phase Voltage 460 Vac
14 A
Specifications Duty Percentage
100 %
Specifications Duty Type
Continuous
Specifications Material
Magnetic Steel | Non-Magnetic Stainless Steel, Aluminum, Brass.
Specifications Net Weight
125 lb
Specifications Opening Height
6 in
Specifications Opening Width
12 in
Specifications Overall Depth
9 1/2 in
Specifications Overall Height
17 in
Specifications Overall Width
24 in
Specifications Standards
NEMA 12 Enclosure
