Large M-Series Rivet Nut M10 Thread Size, 36.5mm L, Closed End Countersunk Head

Name: Large M-Series Rivet Nut M10 Thread Size, 36.5mm L, Closed End Countersunk Head
Brand: Ornit USA
SKU: MSE-d938b4
Price: 24.99 USD
Availability: OutOfStock

SKU:MSE-d938b4

High-quality Large M-Series Rivet Nut with M10 thread, 36.5mm L, closed end, ideal for industrial use.

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

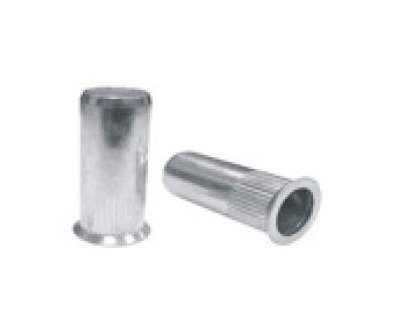

The Large M-Series Rivet Nut features a durable steel construction with a zinc plated finish, ideal for industrial applications. With M10 thread size and a dimension of 36.5mm L, it offers a secure grip range of 7.5mm to 10.5mm. The closed end design enhances structural integrity, meeting precise needs for heavy-duty fastening projects. Available in stainless steel and aluminum options.

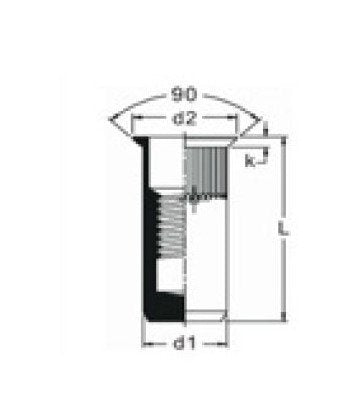

Product Specifications

Dimensions Dimension D1

11.9 mm

Dimensions Dimension L

36.5 mm

Dimensions Hole Size

12.0 mm

Dimensions Maximum Dimension D2

14.7 mm

Dimensions Maximum Dimension K

1.7 mm

Dimensions Maximum Grip Range

10.5 mm

Dimensions Minimum Grip Range

7.5 mm

Note Note

Stainless Steel & Aluminum are available.

Technical Specs Brands

Ornit

Technical Specs Finish

Zinc Plated

Technical Specs Head Style

Countersunk Head (Large)

Technical Specs Material

Steel

Technical Specs Rivet Type

Closed End

Technical Specs Thread Size

M10

Large M-Series Rivet Nut M10 Thread Size, 36.5mm L, Closed End Countersunk Head
