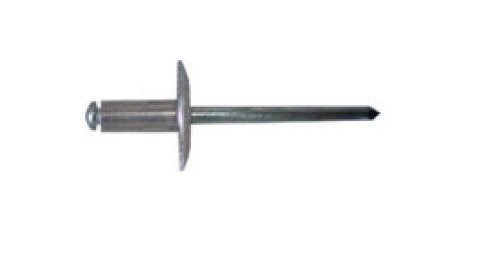

Large Open End Blind Rivet - 4.8mm x 10.0mm
Large Open End Blind Rivet - 4.8mm x 10.0mm
SKU:OPE-28846e
High-quality Large Open End Blind Rivet for secure and durable fastening applications.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Large Open End Blind Rivet - 4.8mm x 10.0mm
$29.99
Quantity: 1
Claim Your Seller Account
Large Open End Blind Rivet - 4.8mm x 10.0mm
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Large Open End Blind Rivet is a high-quality fastener suitable for various applications. With a durable aluminum alloy body and a zinc-plated chromium mandrel, it ensures strong, reliable joints. Measuring 4.8mm in diameter and 10.0mm in body length, it offers a minimum grip range of 3.0mm and a maximum grip range of 5.0mm, capable of withstanding nominal shear force of 150kgf and tensile force of 220kgf. Perfect for industrial use, this rivet guarantees secure and long-lasting connections.
Product Specifications
Nominal Dimensions Body Length
10.0 mm | 0.394 in
Nominal Dimensions Diameter
4.8 mm
Nominal Dimensions Drillhole Size
4.9 mm | 0.193 in
Nominal Dimensions Head Diameter
14 mm | 0.551 in
Nominal Dimensions Head Thickness
1.70 mm | 0.067 in
Nominal Dimensions Mandrel Diameter
2.61 mm | 0.103 in
Nominal Dimensions Maximum Grip Range
5.0 mm | 0.197 in
Nominal Dimensions Minimum Grip Range
3.0 mm | 0.118 in
Nominal Forces Nominal Shear Force
150 kgf | 330 lbf
Nominal Forces Nominal Tensile Force
220 kgf | 484 lbf
Technical Specs Body Finish
Natural
Technical Specs Body Material
Aluminum Alloy (2.5 mg) to AA 5052
Technical Specs Brands
Ornit
Technical Specs Carton Quantity
3000
Technical Specs Head Style
Large
Technical Specs Mandrel Finish
Zinc Plated Chromium (Cr) VI Free
Technical Specs Mandrel Material
Low Carbon Steel SAE 1006-1022
