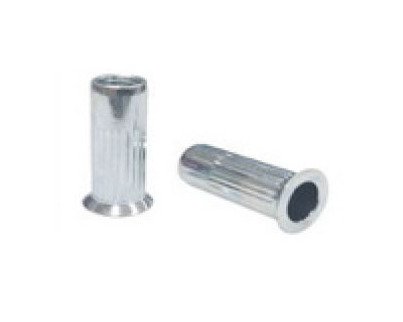

Large Steel Rivet Nut M8 Thread Countersunk Head - 18.5mm

Name: Large Steel Rivet Nut M8 Thread Countersunk Head - 18.5mm
Brand: Ornit USA
SKU: MSE-f85fda
Price: 12.99 USD
Availability: OutOfStock

SKU:MSE-f85fda

High-quality steel rivet nut with M8 thread, 18.5mm size, and large countersunk head. Durable, secure, and versatile for various applications.

$12.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The M-Series 18.5mm Dimension L and M8 Thread Size Open End Countersunk Head (Large) Steel Rivet Nut by Ornit is a durable and reliable fastening solution for a wide range of applications. Made of high-quality steel with a zinc-plated finish, this rivet nut offers a secure grip range from 1.5mm to 4.0mm. The large countersunk head design ensures a flush fit and easy installation. Available in stainless steel and aluminum variants. Ideal for industrial, automotive, and construction use.

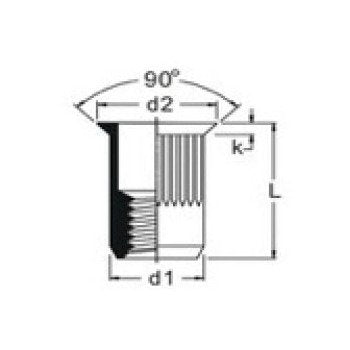

Product Specifications

Dimensions Dimension D1

11.0 mm

Dimensions Dimension L

18.5 mm

Dimensions Hole Size

11.0 mm

Dimensions Maximum Dimension D2

13.4 mm

Dimensions Maximum Dimension K

1.5 mm

Dimensions Maximum Grip Range

4.0 mm

Dimensions Minimum Grip Range

1.5 mm

Note Note

Stainless Steel & Aluminum are available.

Technical Specs Brands

Ornit

Technical Specs Finish

Zinc Plated

Technical Specs Head Style

Countersunk Head (Large)

Technical Specs Material

Steel

Technical Specs Rivet Type

Open End

Technical Specs Thread Size

Large Steel Rivet Nut M8 Thread Countersunk Head - 18.5mm
