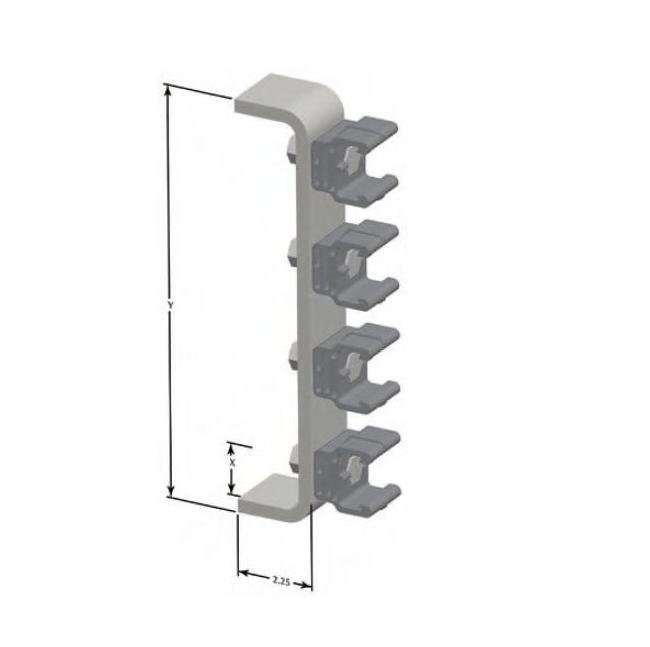

The Lateral Bracket for Hevi-Bar II Conductor Bar Systems is a durable mounting solution designed to configure conductor bars efficiently. Crafted from plated steel, this bracket, 2 1/2" wide by 3/8" thick, comes with four pre-installed hangers featuring corrosion-resistant stainless steel cross-bolts. With multiple amperage ratings (700 A, 1000 A, 1500 A), and precise dimensions (X: 1 1/2 in, Y: 12 in), this bracket ensures secure placement on the vertical web of beams. Ideal for industries requiring robust crane control, this bracket offers both reliability and longevity, meeting stringent procurement standards.
Product Specifications
Specifications Amperage Rating
700 A | 1000 A | 1500 A
Specifications Material
Plated Steel
Specifications Type
Bracket with four pre-installed hangers - stainless steel cross-bolt
Specifications Weight
3.2 lb
Specifications X
1 1/2 in
Specifications Y
12 in
