LBS-22 Heavy Duty Full Extension Ball Bearing Slide
LBS-22 Heavy Duty Full Extension Ball Bearing Slide
SKU:CHA-b9178c
N/A
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
LBS-22 Heavy Duty Full Extension Ball Bearing Slide
$49.99
Quantity: 1
Claim Your Seller Account
LBS-22 Heavy Duty Full Extension Ball Bearing Slide
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Product Specifications
Notes 0

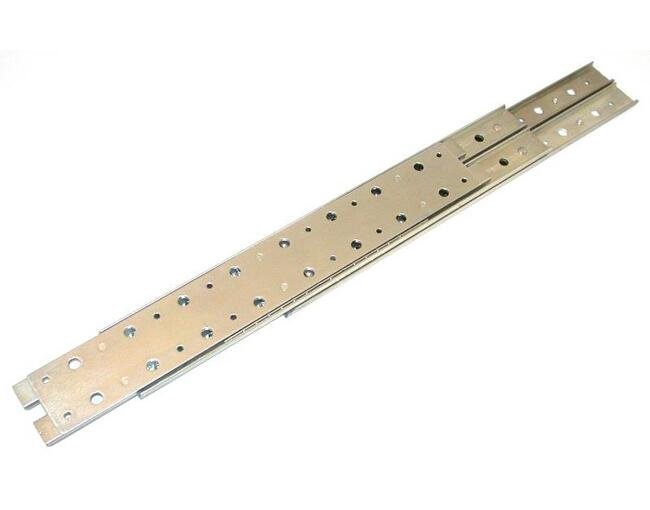

LBS-22 consists of one set of two non-handed slides. Slides are unhanded and can be mounted to the right or left hand side of the cabinet. If ordered individually, a special reference number will be assigned.All slides are supplied with special (0.094" max. head height) #8;-32 x 3/8" Phillips pan head screws and self-locking nuts for mounting one pair of slides, Use only these special screws when mounting through slide member to prevent internal damage to ball retainer, If mounting to cabinet rails, see cabinet mounting section for ball bearing slides.LBS-22 does not disconnect.Slide members are made from 14 gauge (0.074) work hardened cold rolled steel.Slide finish is clear zinc commercial plating.Holes other than those shown may be in part at vendor's option.Load capacity is based on one pair of slides at full extension with load (center of gravity) centered between the slides and at midpoint of the slide (chassis section). Load capacities have a 100% (static load) safety factor at full extension. The slides will support more than the stated capacities, but are not designed to be operated at capacities greater than those stated.Grease applied to ball bearing slides has a temperature range of -45ºF to 350ºF.Other non-standard options which are available include: special marking, special extensions, special finishes, lock-in, and complete design changes per request. Factory as these options will require a special reference number to assure receipt of specified options.
Specifications Cold Rolled Steel
14 (0.074) gauge

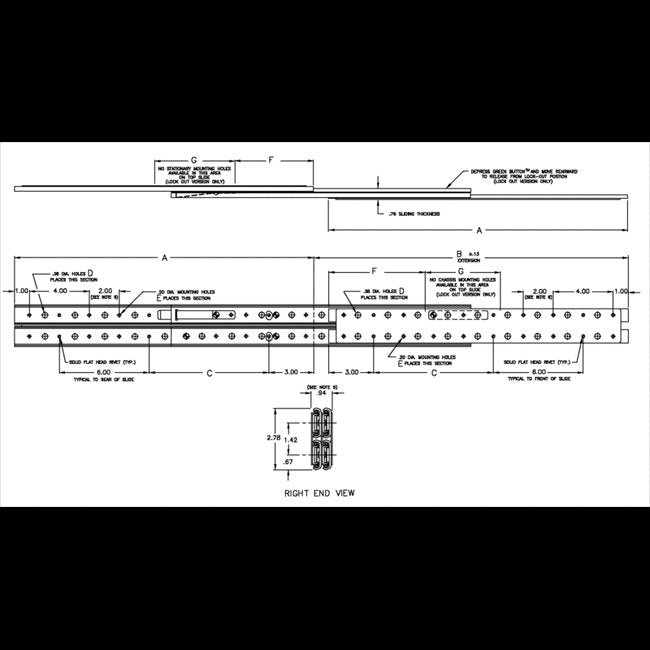

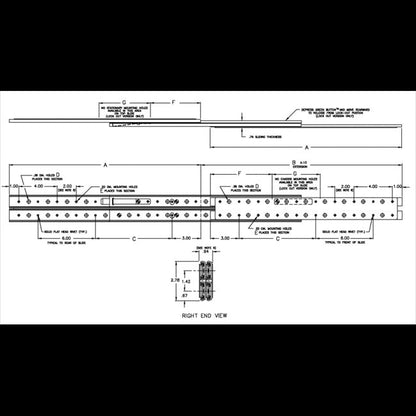

Specifications D Of 20 Dia Mounting Holes
20
Specifications E Of 38 Dia Mounting Holes
14
Specifications Finish
Clear zinc commercial plating
Specifications Forward Extension B
23.00 in
Specifications Gdi Reference
CC4400-00-0220
Specifications Installation Sheet
Installation Sheet
Specifications Model
LBS-22
Specifications Mounting Screw Head Height Max
0.094 in
Specifications Slide Length A
22.00 in
Specifications Spec Sheets
Specification Sheet
Specifications Temperature
-45 to 350 ºF
Specifications Weight Capacity
505 lbs
Specifications Weight Capacity Notes
Load capacity is based on one set of slides at full extension with load (center of gravity) centered between the slides and at midpoint of the slide (chassis section). Load capacities have a 100% (static load) safety factor at full extension. The slides will support more than the stated capacities but are not designed to be operated at capacities greater than those stated.
