LC Series High Voltage Oil-Filled Capacitors
LC Series High Voltage Oil-Filled Capacitors
SKU:OIL-b19831
High Voltage Oil-Filled Capacitors with 1-20 µF capacitance & 10k-100k VDC. Durable construction for reliable DC filtering in extreme conditions.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
LC Series High Voltage Oil-Filled Capacitors
$59.99
Quantity: 1
Claim Your Seller Account
LC Series High Voltage Oil-Filled Capacitors
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

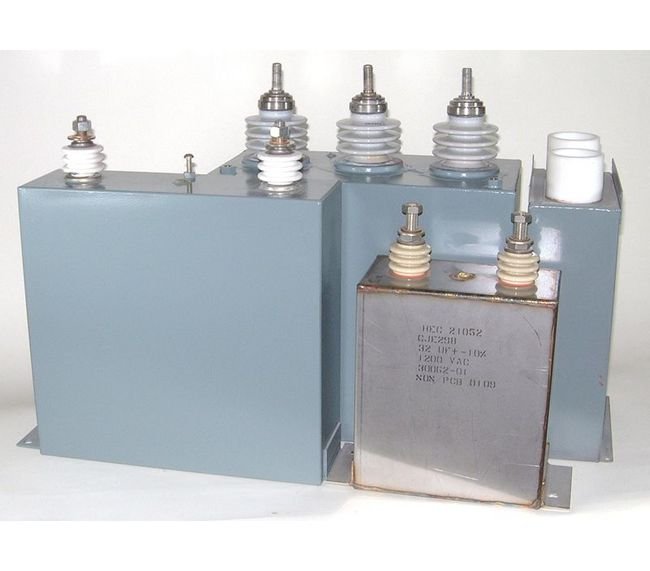

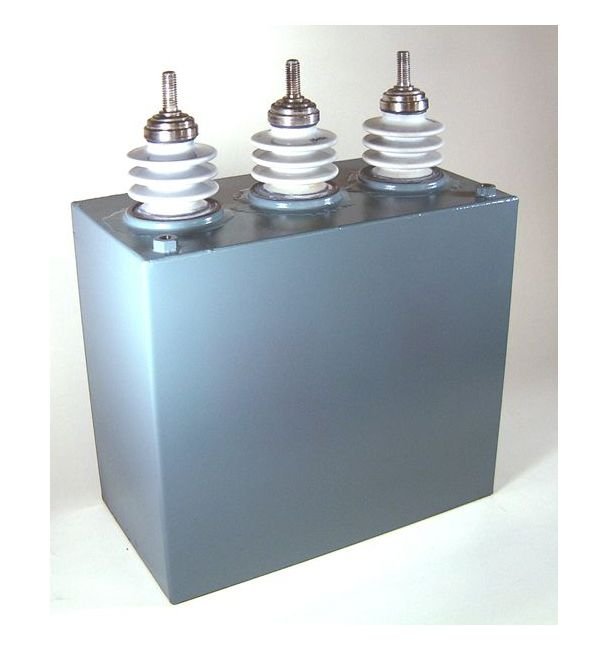

The LC Series Oil-Filled Capacitors are designed for demanding applications requiring reliable DC filtering. With capacitance ranging from 1 to 20 µF and voltage ratings from 10,000 to 100,000 VDC, these capacitors feature welded stainless steel cans for durability. Constructed with environmentally friendly materials and meeting stringent insulation resistance requirements, they ensure optimal performance even in extreme temperatures. The AC ripple voltage specifications ensure stable operation, making them ideal for industrial and institutional settings.
Product Specifications
Specifications Ac Ripple Voltage
The sum of the DC voltage and peak AC ripple should not exceed the capacitor's VDC rating.Additionally, the AC component should not exceed:20 % of VDC at 60 Hz10 % of VDC at 400 Hz5 % of VDC at 1 kHz1% of VDC at 10 kHz
Specifications Can Construction
Mild Steel with Epoxy Finish | Welded Stainless Steel
Specifications Cap
1 µF
Specifications Capacitance Range
1 to 20 µF
Specifications Capacitance Tolerance
±10% Standard
Specifications Dielectric
Kraft paper and polypropylene with environmentally compatible impregnant

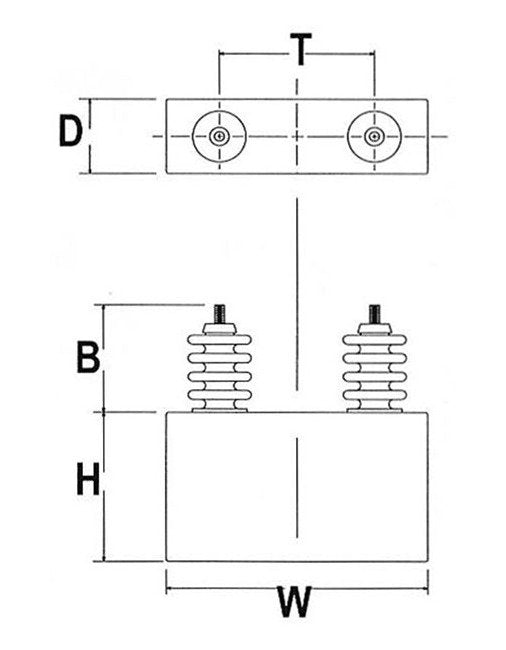

Specifications Dimension B
3 in
Specifications Dimension D
4.0 in
Specifications Dimension H
8 in
Specifications Dimension T
5.00 in
Specifications Dimension W
8.0 in
Specifications Insulation Resistance At 25c Typical
25000 MΩ
Specifications Operating Temperature
-40 to +90 ºC
Specifications Voltage Dc
20000 V
