LC Series Oil-Filled High Voltage Capacitors
LC Series Oil-Filled High Voltage Capacitors
SKU:OIL-be7c77
Reliable high-voltage capacitors for diverse applications. 1-20 µF, 10,000-100,000 VDC. Durable welded design with precise specifications.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
LC Series Oil-Filled High Voltage Capacitors
$89.99
Quantity: 1
Claim Your Seller Account
LC Series Oil-Filled High Voltage Capacitors
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

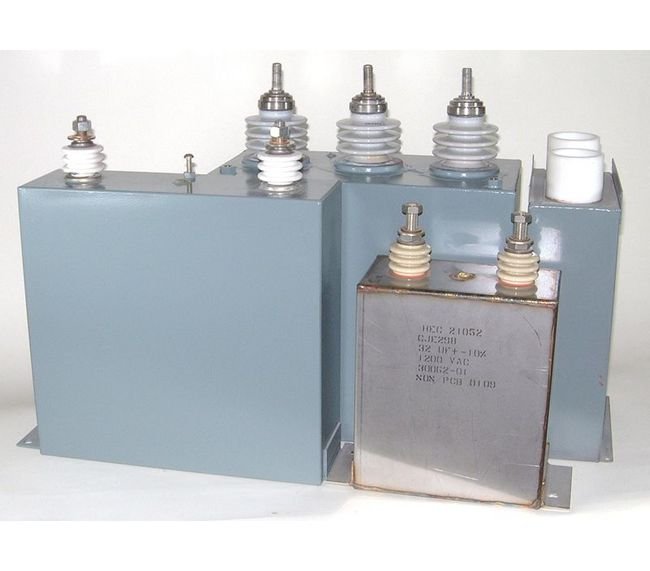

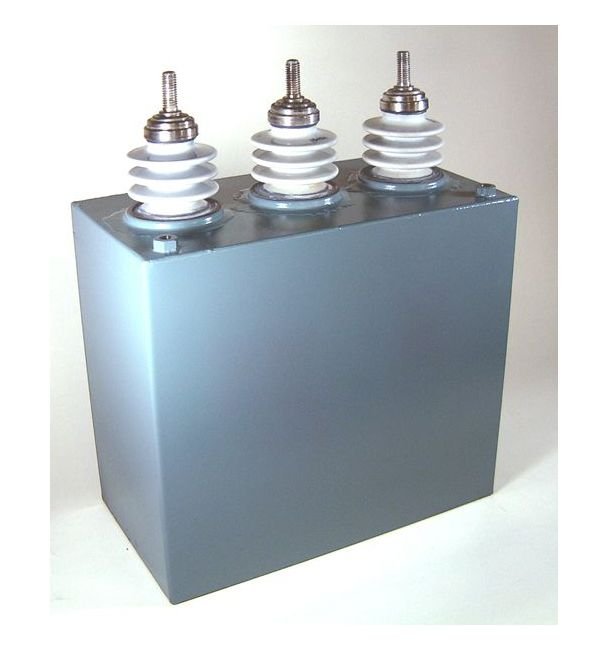

Meet your high-voltage capacitance needs with our LC Series Oil-Filled Capacitors. Ranging from 1 to 20 µF capacitance and voltages from 10,000 to 100,000 VDC, these capacitors come in welded rectangular cans for durable performance. With features like a capacitance tolerance of ±10%, operating temperature range of -40 to +90 ºC, and insulation resistance of 25000 MΩ, these capacitors ensure reliability in varied conditions. The can construction includes mild steel with epoxy finish or welded stainless steel, while the dielectric consists of kraft paper and polypropylene with an environmentally compatible impregnant. Ensure smooth operations with our capacitors' AC ripple voltage specifications that adhere to strict guidelines for different frequencies.
Product Specifications
Specifications Ac Ripple Voltage
The sum of the DC voltage and peak AC ripple should not exceed the capacitor's VDC rating.Additionally, the AC component should not exceed:20 % of VDC at 60 Hz10 % of VDC at 400 Hz5 % of VDC at 1 kHz1% of VDC at 10 kHz
Specifications Can Construction
Mild Steel with Epoxy Finish | Welded Stainless Steel
Specifications Capacitance Tolerance
±10% Standard
Specifications Dielectric
Kraft paper and polypropylene with environmentally compatible impregnant
Specifications Insulation Resistance At 25c Typical
25000 MΩ
Specifications Operating Temperature
-40 to +90 ºC
