LCFV-1012 High Efficiency Floor Mount Flushing Check Valve

Name: LCFV-1012 High Efficiency Floor Mount Flushing Check Valve
Brand: C&L Supply Company, Inc.
SKU: HIG-ac9233
Price: 299.99 USD
Availability: OutOfStock

SKU:HIG-ac9233

High-efficiency floor mount flushing check valve, white vitreous china, ASME and ICC-ES PMG certified

$299.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

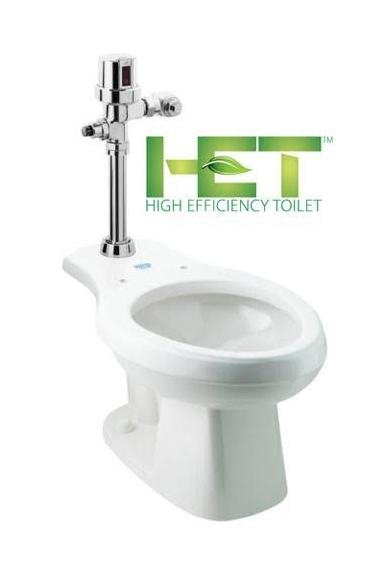

The LCFV-1012 Floor Mount Low Consumption Flushing Check Valve is a high-performance system designed for both consumer and institutional settings. It features a white color vitreous china fixture with a floor mount water closet bowl and elongated rim for added comfort. With a fully glazed trapway and direct feed jet, this system ensures efficient flushing with a minimum flow rate of 25 gpm. Measuring 10 inches rough-in and equipped with a 1-1/2 inch I.P.S. top spud inlet, this flushing check valve meets rigorous industry standards including ASME A112.19.2, Energy Act of 1992, and ICC-ES PMG certifications.

Product Specifications

Specifications Compliance And Certifications

American Society of Mechanical Engineers (ASME) A112.19.2/CSA B45.1Energy Act of 1992International Code Council Evaluation Service Paper Money GradingÂ® (ICC-ES PMG) Certified

Specifications Maximum Static Pressure

80 psi

Specifications Minimum Flowing Pressure

25 psi

Specifications Minimum Flow Rate

25 gpm

Specifications Specifications

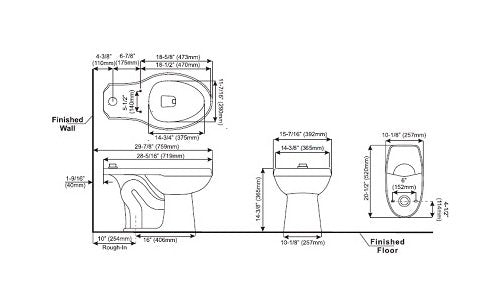

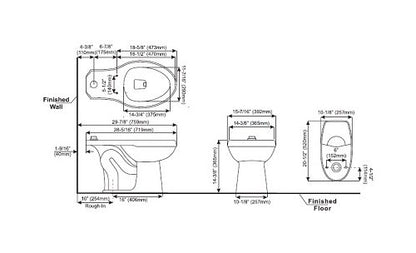

White ColorVitreous ChinaFloor Mount Water Closet BowlElongated Rim10 Inch (in) (254 Millimeter (mm)) Rough-In1-1/2 Inch (in) (38 Millimeter (mm)) I.P.S. Top Spud Inlet2 Inch (in) (50 Millimeter (mm)) Fully Glazed Trapway11 Inch (in) (279 Millimeter (mm)) x 13 Inch (in) (330 Millimeter (mm)) Water Surface AreaDirect Feed Jet100% Factory TestedToilet Seat Not Included
