Lead Lined Plywood - 3/4" Plywood with 1/4" Lead Thickness
Lead Lined Plywood - 3/4" Plywood with 1/4" Lead Thickness
SKU:LEA-dabd8d
Enhanced radiation shielding with 3/4" plywood & 1/4" lead lining. Compliant with ASTM & AWPA standards.
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
Lead Lined Plywood - 3/4" Plywood with 1/4" Lead Thickness
$299.99
Quantity: 1
Claim Your Seller Account
Lead Lined Plywood - 3/4" Plywood with 1/4" Lead Thickness
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

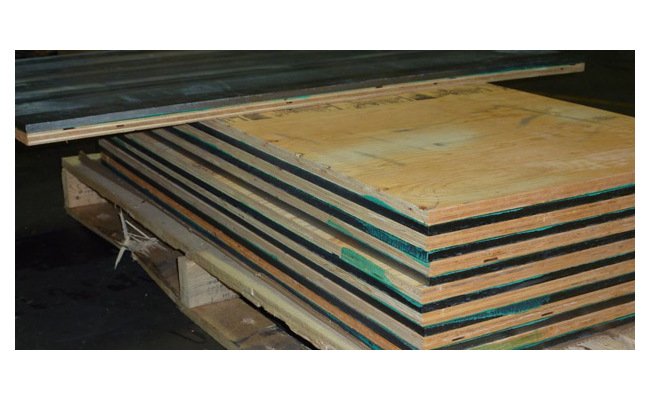

Upgrade your radiation shielding with MarShield™ Lead Lined Plywood. This product features a 3/4" plywood base with a 1/4" lead lining, offering exceptional protection for diagnostic imaging rooms. Compliant with ASTM B-749-03, AWPA C27 Type A, and QQ-L-201F standards.
Product Specifications
Additional Information Additional Information
Meets or exceeds Federal Specifications QQ-L-201F, Grade C, ASTM B-749-03 Standard Specification for lead and lead alloy strip, sheet and plate products.Fire-retardant plywood conforms to AWPA C27 type A.Lead sheet is 99.9% pure, or better, of un-pierced virgin lead, free of dross, oxide inclusions, scale, laminations, blisters and cracks.Lead sheet is factory laminated to plywood panels.Available in 5/8" to 3/4" in thickness with a lead thickness of 1/16" no less to 1/2" maximum thickness.Lead lined plywood is typically recommended for heavier lead shielding requirements, usually when the lead shielding exceeds 1/8" thick.Lead lined plywood at these thicknesses becomes very heavy to handle in full sheet form (4' x 8'). We recommend having us cut the lead lined plywood into widths that equal your on-center stud dimensions (e.g. 12" or 16"). This will make the lead lined plywood much more manageable for the installer.
Example Example
1 sheet of 3/4" x 4' x 8' plywood, with 1/4" lead lining to 7', weighs approx. 505 lbs.1 sheet of 3/4" x 16" x 8' plywood, with 1/4" lead lining to 7', weighs approx .168 lbs.
Note Note
Shielding will need to be added to all receptacle switches, fasteners penetrations and seams created when applying the leaded plywood.
Specifications Industry Standards And Certifications
American Society for Testing and Materials (ASTM) B-749-03 | American Wood Protection Association (AWPA) C27 Type A | Grade C | QQ-L-201F
Specifications Lead Thickness
1/4 in
Specifications Plywood Thickness
3/4 in
Specifications Sheet Purity
99.9 %
Specifications Weight
505 lb/ft²
