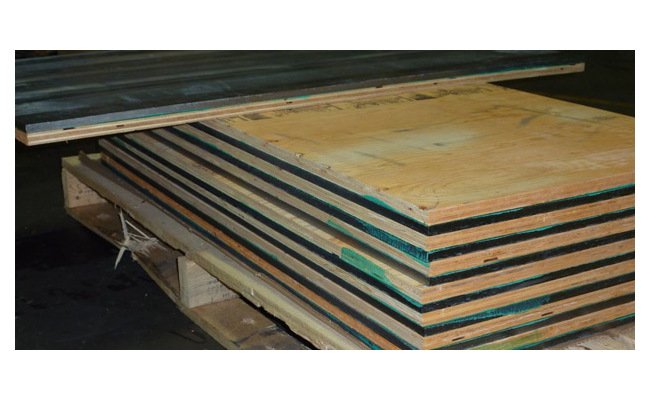

The Lead Shielded Plywood by MarShield™ offers superior radiation shielding for various applications in institutions and facilities requiring lead-lined surfaces. With a plywood thickness of 5/8 inches and lead thickness of 1/16 inches, this product meets stringent industry standards including ASTM B-749-03 and AWPA C27 Type A. The fire-retardant construction ensures safety while the 99.9% pure lead sheet provides optimal shielding. Designed for ease of handling and installation, this lead-lined plywood is a reliable choice for shielding upgrades, new constructions, and diagnostic imaging rooms.
Product Specifications
Additional Information Additional Information
Meets or exceeds Federal Specifications QQ-L-201F, Grade C, ASTM B-749-03 Standard Specification for lead and lead alloy strip, sheet and plate products.Fire-retardant plywood conforms to AWPA C27 type A.Lead sheet is 99.9% pure, or better, of un-pierced virgin lead, free of dross, oxide inclusions, scale, laminations, blisters and cracks.Lead sheet is factory laminated to plywood panels.Available in 5/8" to 3/4" in thickness with a lead thickness of 1/16" no less to 1/2" maximum thickness.Lead lined plywood is typically recommended for heavier lead shielding requirements, usually when the lead shielding exceeds 1/8" thick.Lead lined plywood at these thicknesses becomes very heavy to handle in full sheet form (4' x 8'). We recommend having us cut the lead lined plywood into widths that equal your on-center stud dimensions (e.g. 12" or 16"). This will make the lead lined plywood much more manageable for the installer.
Example Example
1 sheet of 3/4" x 4' x 8' plywood, with 1/4" lead lining to 7', weighs approx. 505 lbs.1 sheet of 3/4" x 16" x 8' plywood, with 1/4" lead lining to 7', weighs approx .168 lbs.
Note Note
Shielding will need to be added to all receptacle switches, fasteners penetrations and seams created when applying the leaded plywood.
Specifications Industry Standards And Certifications
American Society for Testing and Materials (ASTM) B-749-03 | American Wood Protection Association (AWPA) C27 Type A | Grade C | QQ-L-201F
Specifications Lead Thickness
1/16 in
Specifications Plywood Thickness
5/8 in
Specifications Sheet Purity
99.9 %
Specifications Weight
5.703 lb/ft²
