Lead Shielding Glass for Radiation Protection
Lead Shielding Glass for Radiation Protection
SKU:LEA-fefe1f
Durable lead shielding glass for superior radiation protection in medical and research environments.
Regular price
$499.99
Regular price
Sale price
$499.99
Unit price
per
Initiate Order
Lead Shielding Glass for Radiation Protection
$499.99
Quantity: 1
Claim Your Seller Account
Lead Shielding Glass for Radiation Protection
$499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

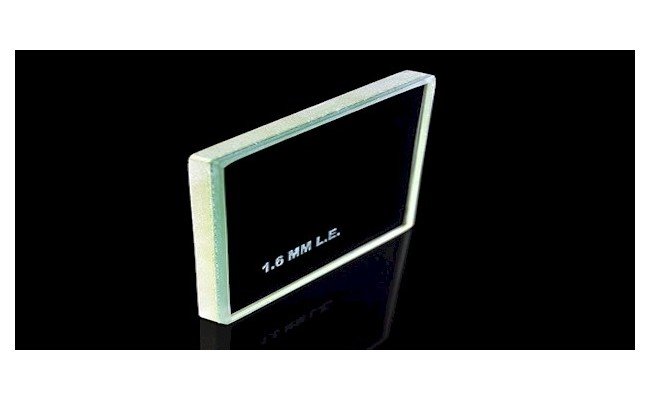

Enhance radiation safety with MarShield's Saf-T-Lite Lead Shielding Glass. This durable laminated glass sandwich features LX-57B lead glass, offering excellent x-ray radiation protection and impact resistance. Compliant with industry standards 16 CFR 1201 Category II and ANSI Z97.1-1984, this high-quality glass ensures comprehensive shielding in medical and research settings.
Product Specifications
Additional Information Additional Information
MarShield⢠X-Ray Glass is a lead barium type glass of high quality optical grade with over 60 percent heavy metal oxide, including at least 55 percent PbO offering optimum performance. Our leaded glass provides excellent visual clarity while shielding against radiation from equipment in the 100 to 300 kV range. Both surfaces are mirror-polished, resisting abrasives and scratches. MarShield⢠high quality lead glass is more than qualified to meet or exceed the high standards of stringent safety regulations established in the medical, scientific, as well as nuclear fields around the world. A continuous, automatic melting/rolling process allows production of lead glass in the industry's largest size, 48Ⳡx 96Ⳡ(1219.2 mm x 2438.4 mm).Made of high quality optical grade material, LX-57B offers excellent radiation protection and high light transmittance. Hard, polished surfaces offer greater scratch resistance and superior visual clarity. Unlike other radiation shielding products, LX-57B will not discolor due to radiation exposure. With LX-57B, the choice is CLEAR.
Cleaning Cleaning
Due to the high lead oxide content, on some of our lead glass surfaces they will be more susceptible to scratching and the attack of acids and alkalis. Use only an approved, non-abrasive cleaning agent along with a soft cloth. The glass can be disinfected by using a commercially available disinfectant.
Features And Benefits Features And Benefits
Saf-T-Lite lead safety glass is available only in 11mm thickness (1.6mm lead equivalency)Provides excellent light transmission of 87.8%Weight: 8 lbs. per sq. ft.
Installation Installation
Remove any protective plastic wrap prior to installation without sharp objects.When installing, care should be taken that the sealing agents do not contain any acid or alkaline substances (e.g. acetic acid, ammonia). Labels may cause staining on the glass surface by the reaction of the adhesive.Lead glass is extremely fragile compared to normal household glass and therefore should only be cut by an experienced glass cutter.
Note Note
The lead equivalent in mm - Pb, defines the protective effect of the glass compared to a lead wall. Example: A glass with 2.0 mm Pb offers the same protective effect as a 2 mm thick lead wall.
Receiving Receiving
All glass must be thoroughly inspected upon receipt of goods.All discrepancies and/or damages shall be immediately noted and reported in writing to MarShield⢠and on the freight bill of lading when received.It is then necessary to immediately notify the carrier's head office of any damages. Please file any claims for freight damages with this carrier within 24 hours. MarShield⢠will happily assist however possible, when requested.All materials received shall be properly stored in the original crate in which it is received until such time as the installation.
Specifications General
Lead glass cannot be tempered.Stickers and etching offered with lead glass ratings by request
Specifications High Quality Transparent Lead Glass
MarShieldâ¢'s lead glass has been designed to provide a high quality, transparent, protective shield against x-ray radiation. Extensive research and development has been done for you to trust its comprehensive protection in any medical or technical researc
Specifications Industry Standards And Certifications
16 CFR 1201 Category II | American National Standards Institute (ANSI) Z97.1-1984
Specifications Knoop Hardness
370
Specifications Material
Top Layer: 3mm float glass.Middle Layer: Safety laminateBottom Layer: LX-57B is a lead barium type glass of high optical grade with over 60 percent heavy metal oxide, including at least 55 percent PbO. It offers high light transm
Specifications Minimum Density
4.36 g/cm³
Specifications Refractive Index Nd
1.71
Specifications Stock Size
12 x 12 in. to 48 x 96 in.
Specifications Thermal Expansion Coefficient
80 x 10-7 /ºC (30 to 380º)
Storage Storage
X-ray leaded glass should not be exposed to humidity, temperature fluctuations or acid gases.The glass should only be stored in a vertical position and never laid flat.The room shall be properly ventilated to carry the dampness out of the room.Avoid any exposure to direct sunlight, extreme heat source, water, and humidity or excessive temperatures.
Uses And Applications Uses And Applications
Window of a portable X-Ray barrier/shieldInspection window inside a lead-lined doorAny application where lead lined safety glass is specified/required
