Lead Shielding Sheet for Radiation Protection, 1.5875mm Thickness
Lead Shielding Sheet for Radiation Protection, 1.5875mm Thickness
SKU:RAD-e22312
High-density lead sheet for radiation protection, 1.5875mm thickness, ASTM compliant
Regular price
$159.99
Regular price
Sale price
$159.99
Unit price
per
Initiate Order
Lead Shielding Sheet for Radiation Protection, 1.5875mm Thickness
$159.99
Quantity: 1
Claim Your Seller Account
Lead Shielding Sheet for Radiation Protection, 1.5875mm Thickness
$159.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Lead Shielding Sheet for Radiation Protection with a standard thickness of 1.5875mm by MarShield™ offers superior radiation shielding capabilities. Compliant with ASTM B-29, B-749, Federal QQ-L-201F, and QQ-L-171E standards, this high-density lead sheet is ideal for applications such as construction, nuclear energy shielding, and soundproofing. With options for custom sizes, laminated panels, and expert installation services, this sheet ensures effective protection against x-rays, gamma radiation, and sound waves.
Product Specifications
Additional Options Additional Options

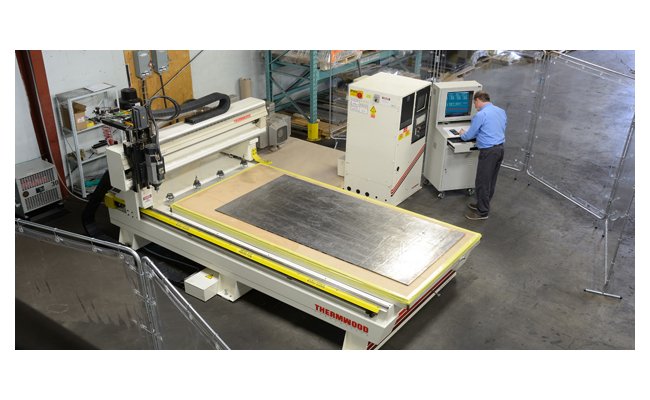

Available as laminated panels, adhesivebonded to plywood, gypsum wallboard and other supporting materials. Available finishing options, including custom milling, custom machining and cutting into any shape or part as small as 1" x 0.35".
Key Features Key Features

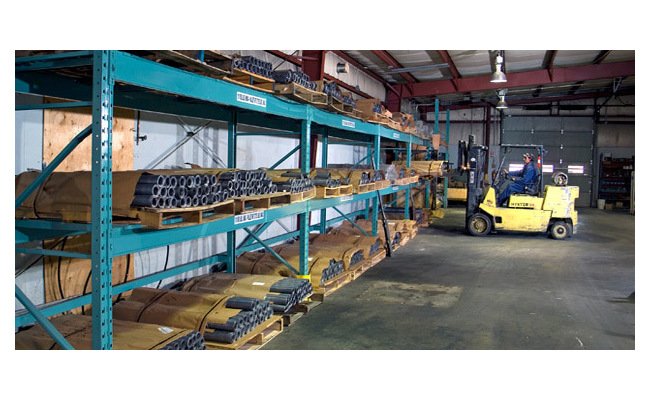

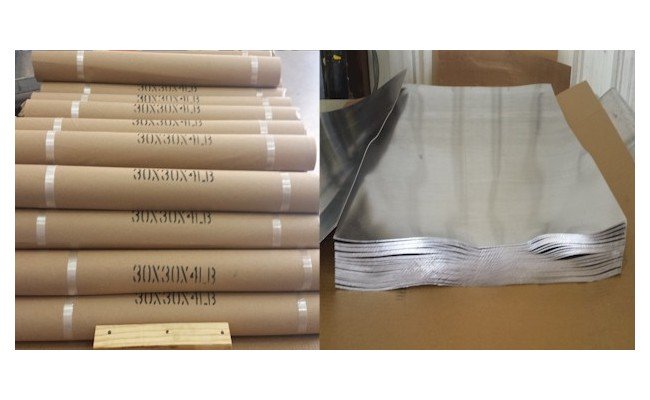

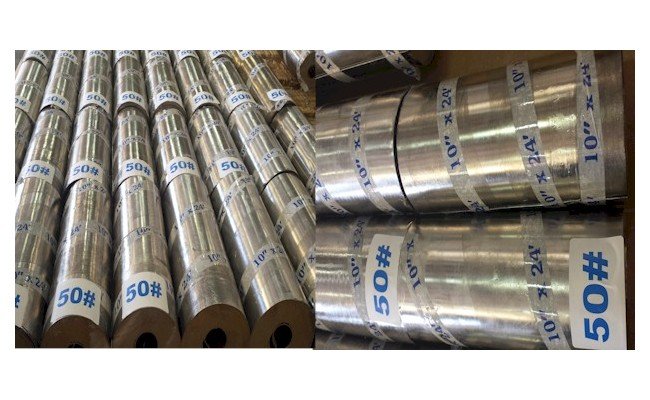

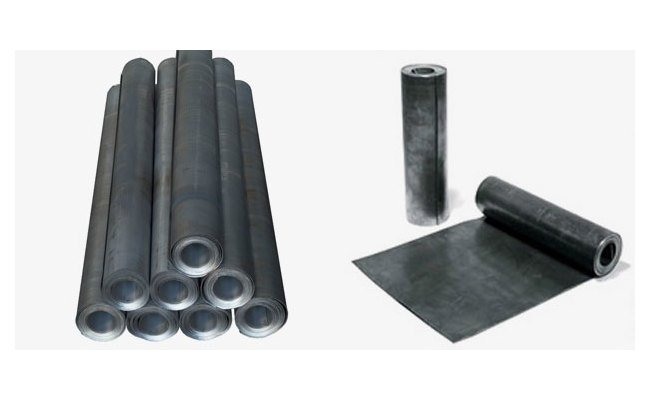

Consistent and high-density, manufactured from pure lead conforming to ASTM B-29, B-749 and Federal QQ-L-201F, QQ-L-171EResistant to corrosion from the atmosphere, salt water and most natural chemicalsSuperior in shielding rooms from radiation against x-rays and gamma radiationHigh "limpness" (low stiffness) and high internal damping capacity allows for excellent blocking of sound and mechanical vibrationAvailable in rolled or sheet form. Smaller sizes are shipped rolled to ensure cost-effective freightCustom sizes and Thickness availableLead buttons or discs to cover screw or nail holes available upon requestWith over 70 tons of sheet lead available in stock, MarShield provides quick turnaround time on stocked sheet lead orders - most can be shipped same dayCustom expert installation services available
Note Note
Custom Thickness available on requestSince sheet lead has very little inherent structural strength, most applications require additional structural support of the sheet lead, or lamination to provide a more rigid building material.
Ordering Ordering
When preparing to order, please have the following requirements available:Sheet sizeThicknessQuantity
Specifications Approximate Weight
4 lb/ft²
Specifications Industry Standards And Certifications
American Society for Testing and Materials (ASTM) B-29 | American Society for Testing and Materials (ASTM) B-749 | Federal QQ-L-171E | Federal QQ-L-201F
Specifications Standard Thickness
0.0625 in | 1.5875 mm
Specifications Standard Thickness Fractions
1/16 in
