LeadShield LX Premium Radiation Shielding Glass
LeadShield LX Premium Radiation Shielding Glass
SKU:LEA-3a5a46
LeadShield LX Premium: Advanced radiation shielding glass for superior impact resistance and clarity.
Regular price
$1,299.99
Regular price
Sale price
$1,299.99
Unit price
per
Initiate Order
LeadShield LX Premium Radiation Shielding Glass
$1,299.99
Quantity: 1
Claim Your Seller Account
LeadShield LX Premium Radiation Shielding Glass
$1,299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The LeadShield LX Premium is a cutting-edge radiation shielding glass designed with a multilayer structure, featuring LX-57B lead glass sandwiched between protective sheet glass panels. This advanced construction ensures superior impact resistance, shatterproof properties, and excellent clarity for critical applications such as X-ray control booths, medical facilities, and nuclear environments. With high light transmittance, easy maintenance, and resistance to staining and discoloration, this lead shielding glass sets a new standard in radiation protection.
Product Specifications
Additional Information Additional Information
MarShield⢠X-Ray Glass is a lead barium type glass of high quality optical grade with over 60 percent heavy metal oxide, including at least 55 percent PbO offering optimum performance. Our leaded glass provides excellent visual clarity while shielding against radiation from equipment in the 100 to 300 kV range. Both surfaces are mirror-polished, resisting abrasives and scratches. MarShield⢠high quality lead glass is more than qualified to meet or exceed the high standards of stringent safety regulations established in the medical, scientific, as well as nuclear fields around the world. A continuous, automatic melting/rolling process allows production of lead glass in the industry's largest size, 48Ⳡx 96Ⳡ(1219.2 mm x 2438.4 mm).Made of high quality optical grade material, LX-57B offers excellent radiation protection and high light transmittance. Hard, polished surfaces offer greater scratch resistance and superior visual clarity. Unlike other radiation shielding products, LX-57B will not discolor due to radiation exposure. With LX-57B, the choice is CLEAR.In certain instances, improper cleaning of standard LX-57B lead glass can cause fogging and staining. This can also occur when standard LX-57B lead glass surfaces are touched by bare hands (transferring sweat or lipids), when wiped with a water soaked cloth, splashed with any bodily fluids, or when certain harsh cleaning products/chemicals are applied. Having extra layers of protection prevents fogging or discoloration due to improper care and cleaning.
Cleaning Cleaning
Due to the high lead oxide content, on some of our lead glass surfaces they will be more susceptible to scratching and the attack of acids and alkalis. Use only an approved, non-abrasive cleaning agent along with a soft cloth. The glass can be disinfected by using a commercially available disinfectant.
Features And Benefits Features And Benefits
High transparencyBecause the lead glass is protected by outer sheet glass, the glass surface will not fog (which refers to discoloration or staining caused by lead substances reacting to moisture or lipids) even when chemicals adhere to its surface or it is wiped with a wet cloth. Easy to maintain!Excellent maintainabilityBecause it is protected by outer sheet glass on both sides, the glass can be cleaned using such items as a wet cloth, glass cleaners, and detergents without any concern about fogging, staining or discoloration. You would clean LX Premium the same way you would clean ordinary windowpanes.SafetyBecause it is a multi-layer laminated glass of LX-57B and outer sheet glass, it is impact-safe and shatter resistant.
Installation Installation
Remove any protective plastic wrap prior to installation without sharp objects.When installing, care should be taken that the sealing agents do not contain any acid or alkaline substances (e.g. acetic acid, ammonia). Labels may cause staining on the glass surface by the reaction of the adhesive.Lead glass is extremely fragile compared to normal household glass and therefore should only be cut by an experienced glass cutter.
Note Note

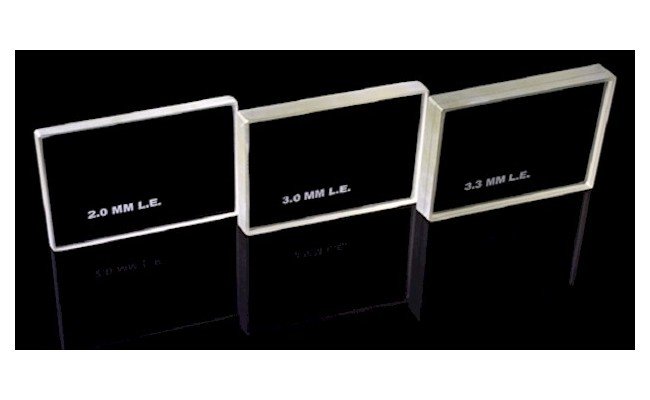

The lead equivalent in mm - Pb, defines the protective effect of the glass compared to a lead wall. Example: A glass with 2.0 mm Pb offers the same protective effect as a 2 mm thick lead wall.
Receiving Receiving
All glass must be thoroughly inspected upon receipt of goods.All discrepancies and/or damages shall be immediately noted and reported in writing to MarShield⢠and on the freight bill of lading when received.It is then necessary to immediately notify the carrier's head office of any damages. Please file any claims for freight damages with this carrier within 24 hours. MarShield⢠will happily assist however possible, when requested.All materials received shall be properly stored in the original crate in which it is received until such time as the installation.
Specifications General
Lead glass cannot be tempered.Stickers and etching offered with lead glass ratings by request
Specifications High Quality Transparent Lead Glass
MarShieldâ¢'s lead glass has been designed to provide a high quality, transparent, protective shield against x-ray radiation. Extensive research and development has been done for you to trust its comprehensive protection in any medical or technical researc
Specifications Knoop Hardness
520
Specifications Light Transmittance At 550 Nm
More than 80 %
Specifications Material
Outer Layers: Special Cover glass.Inter Layer: LX-57B is a lead barium type glass of high optical grade with over 60 percent heavy metal oxide, including at least 55 percent PbO. It offers high light transmission and does not discolor due to radia
Specifications Minimum Density
4.36 g/cm³
Specifications Refractive Index Nd
1.71
Specifications Stock Size
48 to 96 in
Specifications Thermal Expansion Coefficient
80 x 10-7 /ºC (30 to 380º)
Storage Storage
X-ray leaded glass should not be exposed to humidity, temperature fluctuations or acid gases.The glass should only be stored in a vertical position and never laid flat.The room shall be properly ventilated to carry the dampness out of the room.Avoid any exposure to direct sunlight, extreme heat source, water, and humidity or excessive temperatures.
Uses And Applications Uses And Applications
Window of an X-ray control booth that requires sterilizationObservation window for an angiography room or anywhere chemicals are likely to spatterInspection window of a door that is frequently touched by people
