Left Side Driven 2-Part Pallet Roller Conveyor - 970mm x 1500mm x 178mm

Name: Left Side Driven 2-Part Pallet Roller Conveyor - 970mm x 1500mm x 178mm
Brand: TPC Packaging Solutions
SKU: PAC-4a8de4
Price: 2599.99 USD
Availability: OutOfStock

SKU:PAC-4a8de4

Efficient Left Side Driven Pallet Roller Conveyor for warehouses. Supports up to 1,500 kg, 11.4 m/min speed.

$2,599.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

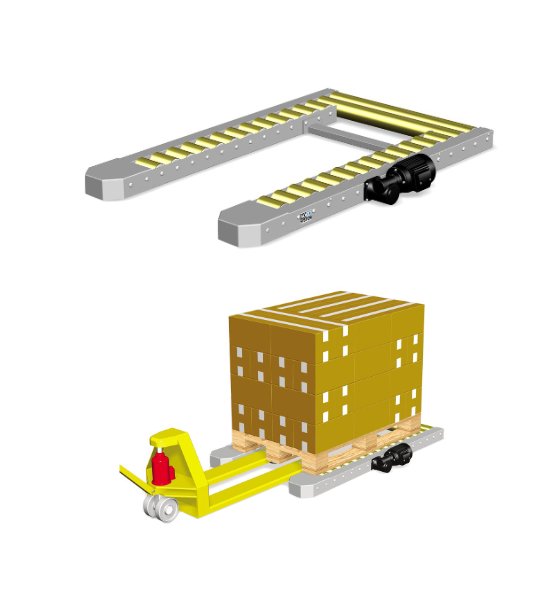

The Left Side Driven 2-Part Pallet Roller Conveyor is a reliable solution for coupling driven conveyors in warehouses and distribution centers. Featuring a sturdy construction with cold-bend angle profiles and electro galvanized steel components, this conveyor can handle up to 1,500 kg per pallet. The chain drive system with hardened steel sprockets ensures smooth operation at a speed of 11.4 m/min. With a gear motor of 0.37 kW mounted on the left side and a roller pitch of 178mm, this conveyor is designed for efficiency and durability.

Product Specifications

Dimensions Length

1500 mm

Dimensions Width

970 mm

Note Note

Subject to alteration.

Specifications Axle Diameter

17 mm

Specifications Bearings

6203 - 2rs

Specifications Chain Cover

Chains are protected by a U-profile mounted above the chains. The chain cover is beneath the roller level to ensure access to pallets from both sides of the conveyor.

Specifications Chain Drive

Chains operate beneath roller surface. Chain drive is from roller to roller. 1/2" sprockets of hardened steel are integrated with the bearing of the roller.

Specifications Conveying Rollers Diameter

80 mm

Specifications Frames

Cold-bend angle profiles bolted to C-profile cross bars with supports.

Specifications Gear Motor

0.37 kW

Specifications Motor Mounted

Left Side

Specifications Pallet Handling Surface Treatment

Electro galvanized steel with the exception of gear motor, chain, and roller axles. Rollers are electro galvanized with yellow crome.

Specifications Payload

For use up to 1,500 kg load per pallet and motor unit. Maximum suitable load is determined by several factors like speed of operation, width of conveyor, and shape and width of the pallets. If in doubt, please contact SOCO SYSTEM.

Specifications Roller Conveyor

Electro galvanized steel tubes

Specifications Roller Fittings

Rollers are suspended between side frames by means of M10 axle.

Specifications Roller Pitch

178 mm

Specifications Speed

11.4 m/min

Specifications Standard Total Height From Floor To Top Of Roller

90 mm

Left Side Driven 2-Part Pallet Roller Conveyor - 970mm x 1500mm x 178mm
