Level VI Wall Plug-In Power Supply, 16VAC 750mA cULus
Level VI Wall Plug-In Power Supply, 16VAC 750mA cULus
SKU:WAL-2e76e5
Efficient Level VI Wall Plug-In Power Supply delivering stable 16VAC @ 750mA output. Ideal for external power sources.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Level VI Wall Plug-In Power Supply, 16VAC 750mA cULus
$29.99
Quantity: 1
Claim Your Seller Account
Level VI Wall Plug-In Power Supply, 16VAC 750mA cULus
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

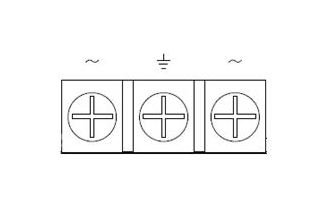

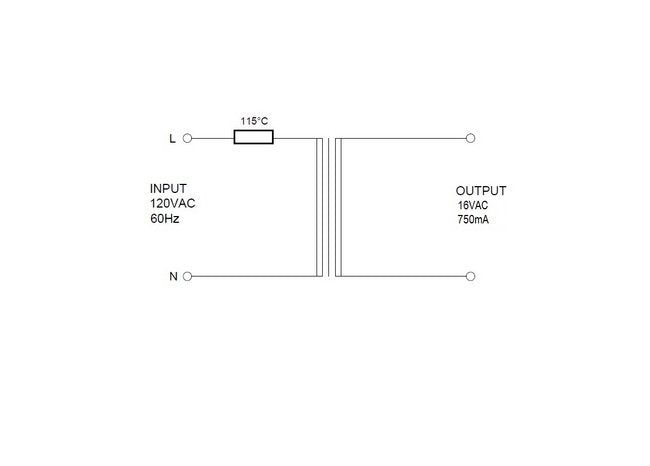

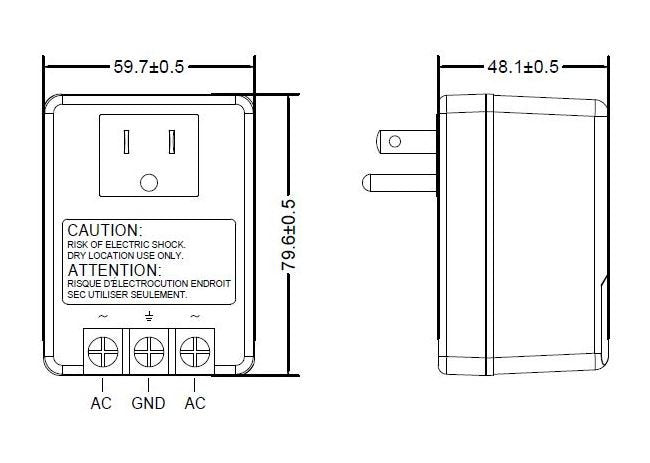

The Level VI Wall Plug-In Power Supply delivers efficient and reliable power output at 16VAC and 750mA. With primary input voltage of 120VAC, input operating frequency of 60Hz, and secondary output voltage tolerance of ±5%, this power supply ensures stable and consistent power delivery. Featuring screw terminals with pass-through ground, it meets Class 2 UL ratings and is ideal for external power source applications. The compact design with dimensions of 79.6mm x 59.7mm x 48.1mm makes it easy to install in various settings.
Product Specifications
Mechanical Parameters Case Type
Thermoplastic Molded Enclosure
Specifications 2007 Eisa Efficiency
VI
Specifications Average Efficiency
82.96 %
Specifications Depth
48.1 mm
Specifications Height
79.6 mm
Specifications Input Operating Frequency
60 Hz
Specifications Input Plug
North America
Specifications Intended Applications
External Power Source
Specifications Length
59.7 mm
Specifications Maximum Temperature Rise At Rated Load
30 ºC
Specifications Maximum Temperature Rise On Enclosure Surface
45 ºC
Specifications Mounting Configuration
Wall Plug-In
Specifications No Load Power Stand By
⤠0.21 W
Specifications Operating Temperature Range
-10 to +40 ºC
Specifications Output Type
AC
Specifications Output Voltage
16 V
Specifications Power Supply Ul Rating
Class 2
Specifications Primary Excitation Current
< 4 mA
Specifications Primary Input Voltage Ac
120 V
Specifications Secondary No Load Reference Voltage Ac
< 20.0 V
Specifications Secondary Output Current Ac
750 mA
Specifications Secondary Output Voltage Ac At Secondary Rated Cu
16 V
Specifications Stock
Yes
Specifications Tolerance For Secondary Output Voltage Ac
± 5 %
