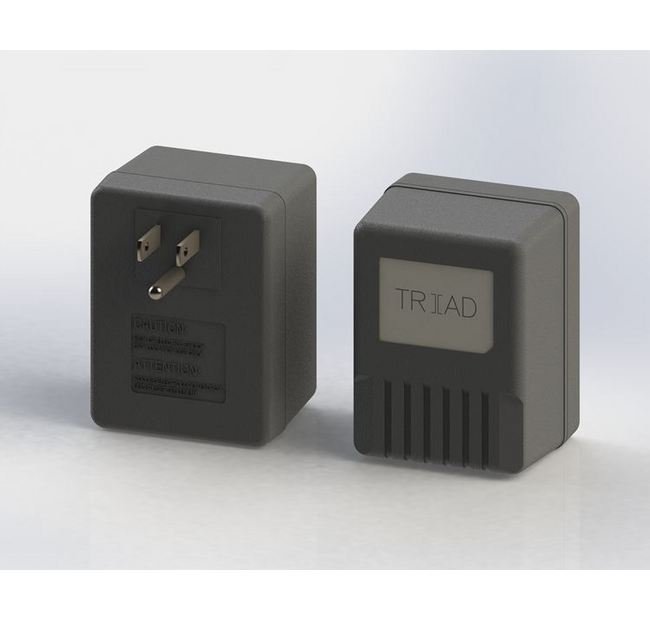

Level VI Wall Plug-In Power Supply 24VAC @ 500mA cULus
Level VI Wall Plug-In Power Supply 24VAC @ 500mA cULus
SKU:WAL-9fbed8
Efficient Level VI Wall Plug-In Power Supply - Primary Input Voltage: 120VAC, Output Voltage: 24VAC @ 500mA
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Level VI Wall Plug-In Power Supply 24VAC @ 500mA cULus
$39.99
Quantity: 1
Claim Your Seller Account
Level VI Wall Plug-In Power Supply 24VAC @ 500mA cULus
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

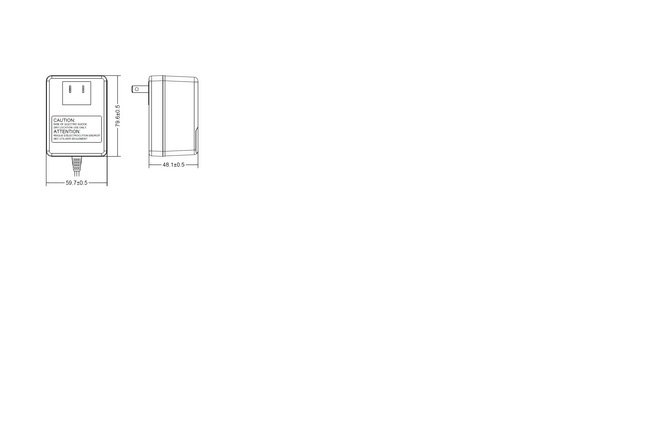

The Level VI Wall Plug-In Power Supply delivers efficient power output of 24VAC @ 500mA. With a primary input voltage of 120VAC 60Hz and secondary output voltage range of 6VAC to 24VAC, this power supply ensures reliable performance. It boasts a compact design with dimensions of Height: 79.6mm, Width: 59.7mm, Depth: 48.1mm. Additionally, it meets UL/cUL safety standards for quality assurance.
Product Specifications
Mechanical Parameters Case Type
Thermoplastic Molded Enclosure

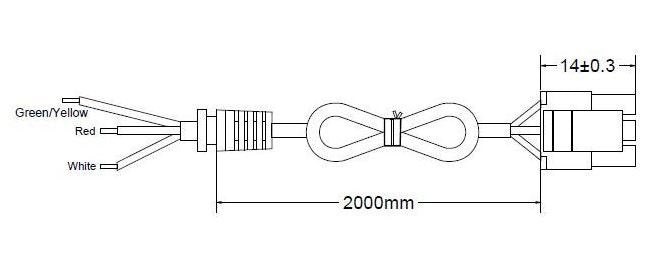

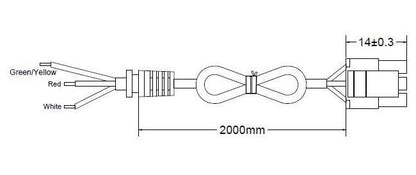

Mechanical Parameters Minimum Output Cord Length
6 ft
Mechanical Parameters Output Cord Size
24 AWG
Specifications 2007 Eisa Efficiency
VI
Specifications Average Efficiency
82.96 %
Specifications Depth
48.1 mm
Specifications Height
79.6 mm
Specifications Input Operating Frequency
60 Hz
Specifications Input Plug
North America
Specifications Intended Applications
External Power Source
Specifications Length
59.7 mm
Specifications Maximum Temperature Rise At Rated Load
30 ºC
Specifications Maximum Temperature Rise On Enclosure Surface
45 ºC
Specifications Mounting Configuration
Wall Plug-In
Specifications No Load Power Stand By
⤠0.21 W
Specifications Operating Temperature Range
-10 to +40 ºC
Specifications Output Type
AC
Specifications Output Voltage
24.0 V
Specifications Power Supply Ul Rating
Class 2
Specifications Primary Excitation Current
< 4 mA
Specifications Primary Input Voltage Ac
120 V
Specifications Secondary No Load Reference Voltage Ac
< 29.5 V
Specifications Secondary Output Current Ac
500 mA
Specifications Secondary Output Voltage Ac At Secondary Rated Cu
24 V
Specifications Stock
No
Specifications Tolerance For Secondary Output Voltage Ac
± 5 %
