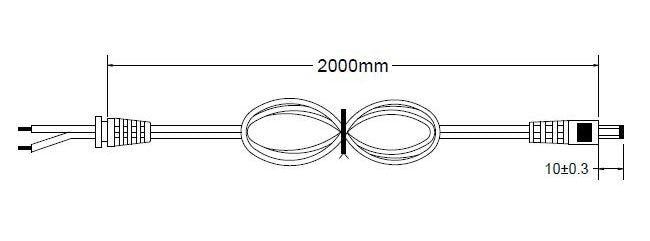

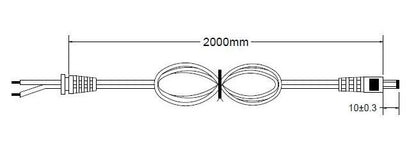

Level VI Wall Plug-In Power Supply, 24VAC @ 500mA, cULus, 2m Cord
Level VI Wall Plug-In Power Supply, 24VAC @ 500mA, cULus, 2m Cord
SKU:WAL-6f2288
Efficient Level VI Wall Plug-In Power Supply with 24VAC output & DOE/CEC compliance
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Level VI Wall Plug-In Power Supply, 24VAC @ 500mA, cULus, 2m Cord
$29.99
Quantity: 1
Claim Your Seller Account
Level VI Wall Plug-In Power Supply, 24VAC @ 500mA, cULus, 2m Cord
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

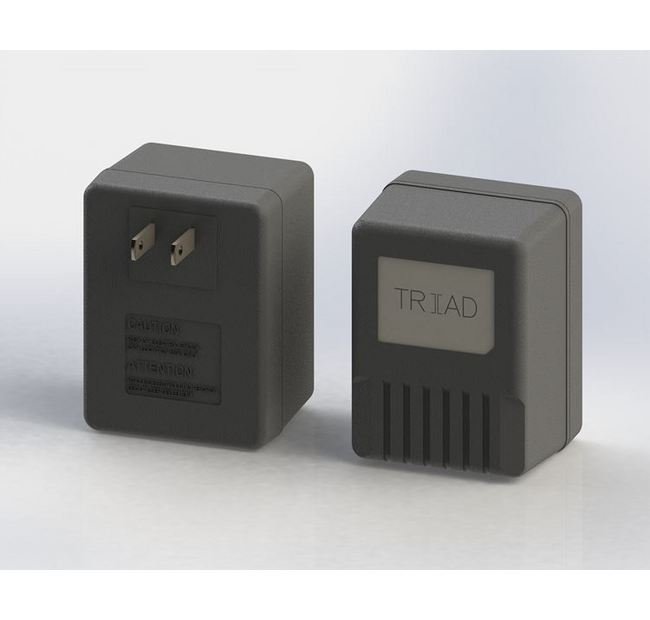

The Level VI Wall Plug-In Power Supply is a reliable external power source suitable for various applications. With a primary input voltage of 120VAC and a secondary output voltage of 24VAC, this power supply ensures efficient and stable performance. Meeting DOE/CEC and RoHS compliance standards, it boasts an average efficiency of 82.96%, making it an energy-efficient choice. Designed with a thermoplastic molded enclosure and North American input plug, this power supply prioritizes safety, quality, and reliability.
Product Specifications
Mechanical Parameters Case Type
Thermoplastic Molded Enclosure
Mechanical Parameters Minimum Output Cord Length
6 ft
Mechanical Parameters Output Cord Size
24 AWG
Note Note
DOE/CEC Compliance: This power supply meets the minimum efficiency levels for direct operation as defined by Department of Energy (DOE) Docket Number EERE-2008-BT-STD-0005-0219.RoHS Compliance: As of manufacturing date February 2005, all standard products meet the requirements of 2011/65/EU, known as the RoHS initiative.Made in China.
Specifications 2007 Eisa Efficiency
VI
Specifications Average Efficiency
82.96 %

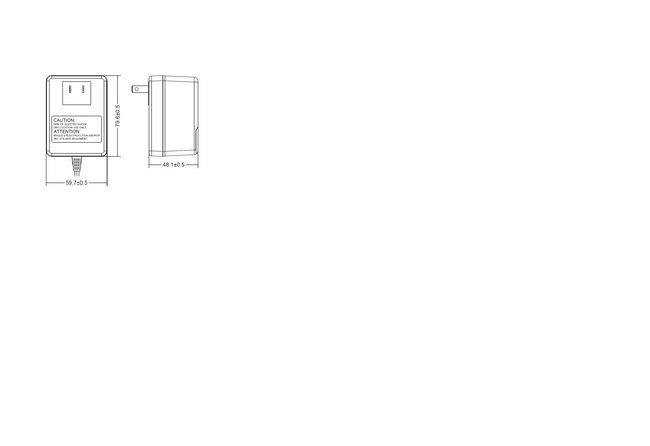

Specifications Depth
48.1 mm
Specifications Height
79.6 mm
Specifications Input Operating Frequency
60 Hz
Specifications Input Plug
North America
Specifications Intended Applications
External Power Source
Specifications Length
59.7 mm
Specifications Maximum Temperature Rise At Rated Load
30 ºC
Specifications Maximum Temperature Rise On Enclosure Surface
45 ºC
Specifications Mounting Configuration
Wall Plug-In
Specifications No Load Power Stand By
⤠0.21 W
Specifications Operating Temperature Range
-10 to +40 ºC
Specifications Output Type
AC
Specifications Output Voltage
24.0 V
Specifications Power Supply Ul Rating
Class 2
Specifications Primary Excitation Current
< 4 mA
Specifications Primary Input Voltage Ac
120 V
Specifications Secondary No Load Reference Voltage Ac
< 29.5 V
Specifications Secondary Output Current Ac
500 mA
Specifications Secondary Output Voltage Ac At Secondary Rated Cu
24 V
Specifications Stock
Yes
Specifications Tolerance For Secondary Output Voltage Ac
± 5 %
