Level VI Wall Plug-In Power Supply 24VAC 500mA UL with Screw Terminals and Mounting Tab
Level VI Wall Plug-In Power Supply 24VAC 500mA UL with Screw Terminals and Mounting Tab
SKU:WAL-897136
Reliable Level VI Wall Plug-In Power Supply, 24VAC @ 500mA, UL Certified, Easy Installation
Regular price
$34.99
Regular price
Sale price
$34.99
Unit price
per
Initiate Order
Level VI Wall Plug-In Power Supply 24VAC 500mA UL with Screw Terminals and Mounting Tab
$34.99
Quantity: 1
Claim Your Seller Account
Level VI Wall Plug-In Power Supply 24VAC 500mA UL with Screw Terminals and Mounting Tab
$34.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

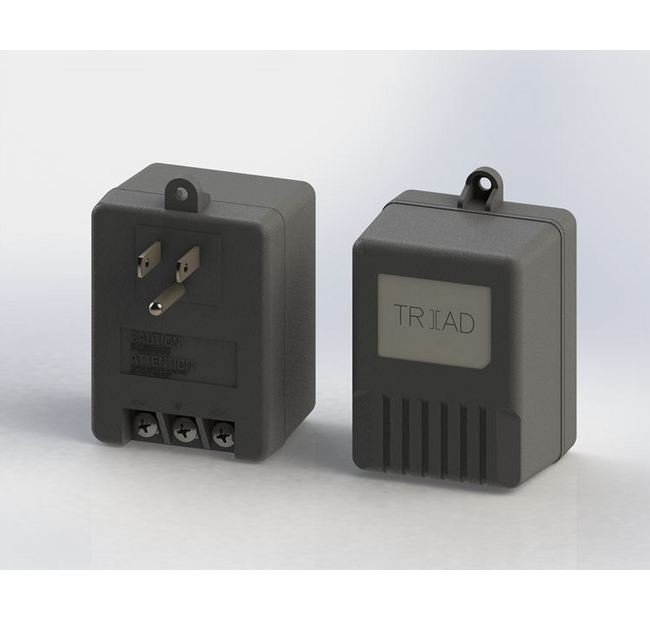

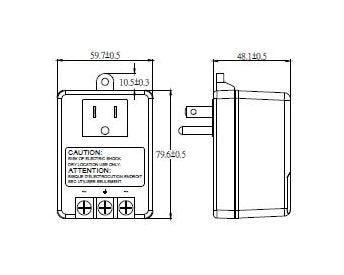

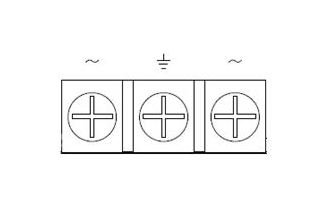

The Level VI Wall Plug-In Power Supply is designed for reliable power output at 24VAC and 500mA. With UL certification, screw terminals for easy installation, and a convenient pass-through ground feature, this power supply ensures safe and efficient operation. Measuring 79.6mm in height, 59.7mm in width, and 48.1mm in depth, it is perfect for external power source applications. Its Class 2 UL rating and compliance with Level VI efficiency standards make it ideal for both consumer and institutional installations.
Product Specifications
Mechanical Parameters Case Type
Thermoplastic Molded Enclosure
Specifications 2007 Eisa Efficiency
VI
Specifications Average Efficiency
82.96 %
Specifications Depth
48.1 mm
Specifications Height
79.6 mm
Specifications Input Operating Frequency
60 Hz
Specifications Input Plug
North America
Specifications Intended Applications
External Power Source
Specifications Length
59.7 mm
Specifications Maximum Temperature Rise At Rated Load
30 ºC
Specifications Maximum Temperature Rise On Enclosure Surface
45 ºC
Specifications Mounting Configuration
Wall Plug-In
Specifications No Load Power Stand By
⤠0.21 W
Specifications Operating Temperature Range
-10 to +40 ºC
Specifications Output Type
AC
Specifications Output Voltage
24.0 V
Specifications Power Supply Ul Rating
Class 2
Specifications Primary Excitation Current
< 4 mA
Specifications Primary Input Voltage Ac
120 V
Specifications Secondary No Load Reference Voltage Ac
< 29.5 V
Specifications Secondary Output Current Ac
500 mA
Specifications Secondary Output Voltage Ac At Secondary Rated Cu
24 V
Specifications Stock
No
Specifications Tolerance For Secondary Output Voltage Ac
± 5 %
