Lewis 1-1 1/2" Aramid Fiber Ouchless Grip
Lewis 1-1 1/2" Aramid Fiber Ouchless Grip
SKU:PUL-8982c8
Durable Lewis 1-1 1/2" Aramid Fiber Ouchless Grip for safe and efficient wire pulling operations. Non-conductive, lightweight, and eliminates wire frays/cuts. Ideal for overhead or underground use.
Regular price
$35.99
Regular price
Sale price
$35.99
Unit price
per
Initiate Order
Lewis 1-1 1/2" Aramid Fiber Ouchless Grip
$35.99
Quantity: 1
Claim Your Seller Account
Lewis 1-1 1/2" Aramid Fiber Ouchless Grip
$35.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

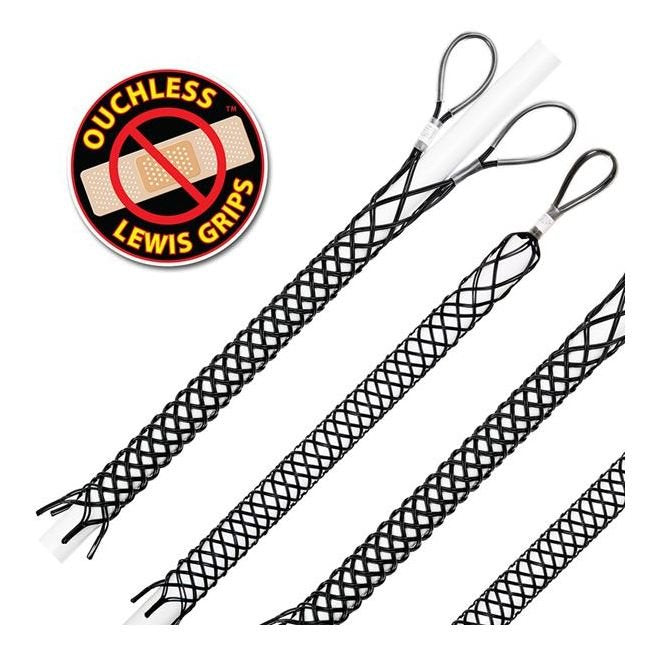

The Lewis 1-1 1/2" Aramid Fiber Ouchless Grip is a durable and safe wire pulling solution designed for overhead or underground operations. Constructed with tough plastic-coated Aramid fibers, this grip eliminates wire frays and cuts, ensuring user safety. With a work load of 1665 lb and ultimate tensile strength of 3330 lb, it offers reliable performance. This non-conductive grip is much lighter than metal alternatives, easier to load and remove, and is suitable for use in energized environments. The grip's mesh closing design and single weave construction make it a trusted choice for professionals in the field, ensuring efficiency and safety during cable pulling operations.
Product Specifications
Additional Information
The Ouchless Lewis Grips™ do not have the metallic fraying as traditional Grip do thereby eliminating the chance of being injured from metallic strands that have been abraded. Ouchless Grips™ can also be used when a metallic grip is unsuitable, such as pulling in an energized environment.
Dimensions Eye
5 in
Dimensions Mesh
44 in
Dimensions Range
1 to 1 1/2 in
Features
Non ConductiveMuch Lighter than Metal GripsEasier to Load & RemoveNo Wire Frays or Wire CutsThe Aramid fiber strand can be used in essentially all grip configurations. However when used around coastal areas or in corrosive environments the Stainless Steel option is still superior.
Note
When using a pulling grip made of Aramid fibers or metal wire, always tape the bare end of the cable that will be inserted into the grip. This will eliminate a sharp edge exposure and prolong the life of your grip.
Specifications Brand
Lewis
Specifications Grip Type
Mesh Closing
Specifications Material
Plastic-Coated Aramid Fiber
Specifications Style
DLE Models
Specifications Type
Double Eye Ouchless Grip™
Specifications Ultimate Tensile Strength Uts
3330 lb
Specifications Weave
Single
Specifications Work Load Wl
1665 lb
