Lewis 1 1/2-2 inch Single Eye Fiber Ouchless Grip™
Lewis 1 1/2-2 inch Single Eye Fiber Ouchless Grip™
SKU:PUL-6b1fc5
Durable, non-conductive Lewis 1 1/2-2 inch Single Eye Fiber Ouchless Grip™ for safe and efficient wire pulling applications.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Lewis 1 1/2-2 inch Single Eye Fiber Ouchless Grip™
$39.99
Quantity: 1
Claim Your Seller Account
Lewis 1 1/2-2 inch Single Eye Fiber Ouchless Grip™
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

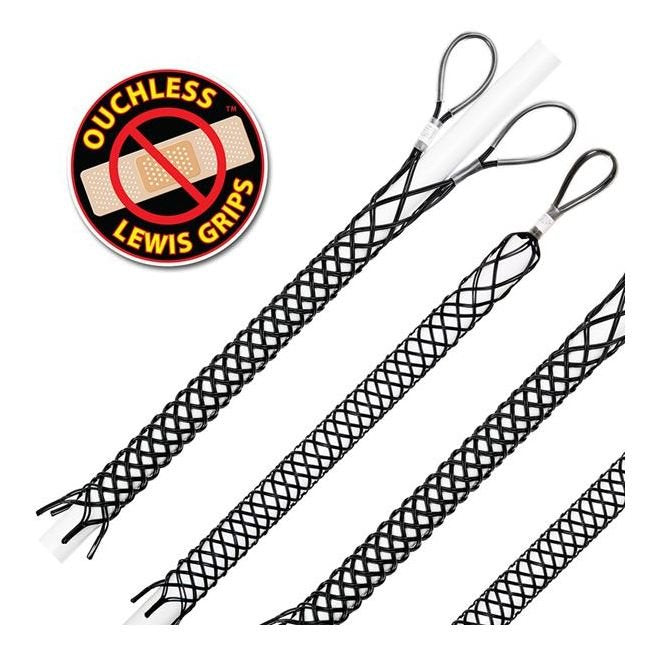

The Lewis 1 1/2-2 inch Single Eye Fiber Ouchless Grip™ from the Ouchless Lewis Grips™ line is a reliable solution designed for wire pulling applications in both overhead and underground operations. Constructed with plastic-coated Aramid fiber strands, this grip offers superior strength with a work load capacity of 1940 lb and an ultimate tensile strength of 3880 lb. Its single weave design and mesh closing make it non-conductive, lightweight, and easy to load and remove, eliminating the risk of wire frays or cuts. Designed to ensure user safety and efficiency, the grip is a durable and versatile choice for pulling electric or fiber optic cables, especially in environments where metallic grips may not be suitable.
Product Specifications
Additional Information
The Ouchless Lewis Grips™ do not have the metallic fraying as traditional Grip do thereby eliminating the chance of being injured from metallic strands that have been abraded. Ouchless Grips™ can also be used when a metallic grip is unsuitable, such as pulling in an energized environment.
Dimensions Eye
5 in
Dimensions Mesh
44 in
Dimensions Range
1 1/2 to 2 in
Features
Non ConductiveMuch Lighter than Metal GripsEasier to Load & RemoveNo Wire Frays or Wire CutsThe Aramid fiber strand can be used in essentially all grip configurations. However when used around coastal areas or in corrosive environments the Stainless Steel option is still superior.
Note
When using a pulling grip made of Aramid fibers or metal wire, always tape the bare end of the cable that will be inserted into the grip. This will eliminate a sharp edge exposure and prolong the life of your grip.
Specifications Brand
Lewis
Specifications Grip Type
Mesh Closing
Specifications Material
Plastic-Coated Aramid Fiber
Specifications Style
SE Models
Specifications Type
Single Eye Ouchless Grip™
Specifications Ultimate Tensile Strength Uts
3880 lb
Specifications Weave
Single
Specifications Work Load Wl
1940 lb
