Lewis 1 1/2-2in. Aramid Fiber Ouchless Grip™
Lewis 1 1/2-2in. Aramid Fiber Ouchless Grip™
SKU:PUL-b89adc
Get the Lewis 1 1/2-2in. Aramid Fiber Ouchless Grip™ for safe and efficient cable pulling operations.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Lewis 1 1/2-2in. Aramid Fiber Ouchless Grip™
$39.99
Quantity: 1
Claim Your Seller Account
Lewis 1 1/2-2in. Aramid Fiber Ouchless Grip™
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

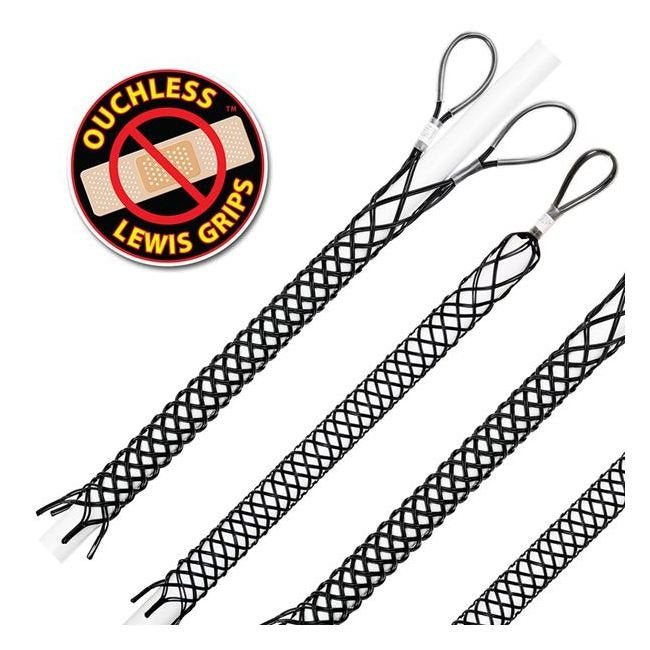

The Lewis 1 1/2 to 2 in. Aramid Fiber Ouchless Grip™ is a premium pulling grip designed for overhead or underground operations, ideal for pulling electric or fiber optic cables. Made of tough plastic-coated Aramid fibers, this grip eliminates the risk of wire frays or cuts, ensuring safety during installations. With a work load of 1940 lb and ultimate tensile strength of 3880 lb, it offers exceptional performance. Lightweight, non-conductive, and mesh closing, this grip is easier to load and remove, surpassing traditional metal grips in efficiency and safety. Suitable for various environments, the Aramid fiber strand construction minimizes risks associated with metallic grips.
Product Specifications
Additional Information
The Ouchless Lewis Grips™ do not have the metallic fraying as traditional Grip do thereby eliminating the chance of being injured from metallic strands that have been abraded. Ouchless Grips™ can also be used when a metallic grip is unsuitable, such as pulling in an energized environment.
Dimensions Eye
5 in
Dimensions Mesh
44 in
Dimensions Range
1 1/2 to 2 in
Features
Non ConductiveMuch Lighter than Metal GripsEasier to Load & RemoveNo Wire Frays or Wire CutsThe Aramid fiber strand can be used in essentially all grip configurations. However when used around coastal areas or in corrosive environments the Stainless Steel option is still superior.
Note
When using a pulling grip made of Aramid fibers or metal wire, always tape the bare end of the cable that will be inserted into the grip. This will eliminate a sharp edge exposure and prolong the life of your grip.
Specifications Brand
Lewis
Specifications Grip Type
Mesh Closing
Specifications Material
Plastic-Coated Aramid Fiber
Specifications Style
DLE Models
Specifications Type
Double Eye Ouchless Grip™
Specifications Ultimate Tensile Strength Uts
3880 lb
Specifications Weave
Single
Specifications Work Load Wl
1940 lb
